Flicker-Free Video Tutorial

November 14, 2012

Flickering in video and film is a common problem resulting from certain frame rate and shutter speed combinations under artificial lighting. This article gives an overview of why this happens, along with recommending settings for minimizing the chances of this happening in the first place.

OVERVIEW

Although light sources might appear continuous to our eyes, many actually illuminate using high frequency pulses of light. Flickering results when the combination of shutter speed and frame rate captures different fractions of these pulses each frame:

Flicker-Free Frame Rate
(equal light each frame)
Flickering Frame Rate
(unequal light each frame)

This appears as distracting flashes in video and is almost always undesirable. The example below was captured under mixed lighting, so the flickering appears in regions which are primarily lit by artificial light:

Video Without Flickering
(at 24 fps and 1/250 second shutter)
Video With Flickering
(at 48 fps and 1/250 second shutter)

The key is that many types of artificial lighting flicker at twice the rate of the power source. This is most pronounced with fluorescent lighting, but also happens to a lesser extent with incandescent. Common power sources are 50 Hz (in Europe and most of Asia) and 60 Hz (in North America), which cause 100 and 120 pulses of light each second, respectively.

Other than changing the lighting, one has two options for overcoming this problem:

  1. Frame Rates. Choose a frame rate equal to the lighting pulse rate divided by some integer. This is often the simplest option since most corresponding shutter speeds will appear flicker-free.

  2. Shutter Speeds. Choose a shutter speed equal to the lighting pulse rate divided by some integer. This option often isn’t as straightforward, and can constrain one’s ability to control motion blur. On the other hand, this option typically minimizes flicker under a broader range of lighting and power types.

For example, in North America, the standard 24 and 30 fps settings work with most shutter speeds (since 30×4 and 24×5 = 120). Use the tool below to find other flicker-free shutter speed and frame rate combinations:

Flicker-free Settings Tool

FPS

COMPLICATIONS

Results may vary depending on the characteristics of your particular lighting. For example, artificial lighting may flicker independent of the power source with some neon and LED lights, and when near failure or improperly seated. Also try to avoid high frame rates (greater than the lighting pulse rate) when possible, or use artificial lighting that provides continuous illumination. Regardless, always capture test footage to verify that everything appears as intended.

Another complication is that power doesn’t always cycle precisely as expected. The frequency can vary by up to about 1% depending on power plant load, in which case there may be no shutter speed or frame rate that is a perfect divisor of the lighting pulse rate. In those situations, using a flicker-free shutter speed will usually provide the best results.

RED CAMERA SETTINGS

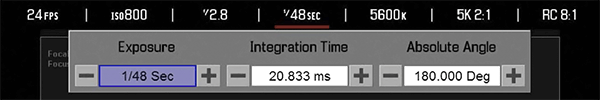

With RED, three shutter controls are available: shutter speed, shutter angle and integration time. Shutter speed and integration time both refer to the exposure duration—they just specify it differently. Whereas shutter speed is expressed as a fraction of a second (when less than one second), integration time is expressed as the number of milliseconds (ms) elapsed using decimals. The shutter angle, shown as “Absolute Angle” below, is a term unique to motion capture, and describes the shutter speed relative to the frame rate.

Depending on the power frequency and frame rate, specifying a flicker-free exposure duration may require a non-standard shutter speed. For example, if one specifies an unusual 7 fps under 60 Hz lighting, the flicker-free tool above will suggest a 189° shutter angle. However, 189° does not have a standard fractional shutter speed equivalent (since it equals 1/13.333… seconds). In those cases, one can tap the shutter speed at the top of the on-screen preview menu (underlined in red above), and manually enter either an integration time or an angle instead.

TIPS & ALTERNATIVES

One can often eliminate flickering by switching between the regional standard 24 or 25 fps capture (while keeping the playback rate unchanged). For example, when shooting in the UK for playback in the US, one could shoot at 25 fps (thus permitting any shutter speed), but then have this played back at 24 fps in the US. The only disadvantage is that the footage will appear roughly 4% slower, but this typically isn’t noticeable.

Even if flickering cannot be eliminated entirely, its severity can usually still be reduced. In general, the intensity of flickering can be decreased by using a slower shutter speed. Similarly, the flicker frequency can sometimes be decreased by using a shutter speed which is as close as possible to a known safe shutter speed. Ultimately though, the only sure-fire way to eliminate flickering is to shoot under natural or continuous artificial lighting.

FURTHER READING

  • See the shutter angle tutorial for an in-depth explanation of what this term means in practice, including illustrations and example videos.
  • For other online tools similar to the flicker-free one shown above, see this website’s interactive cinephotography tools section.

We hope you have found this helpful. Please feel free to contact us at learn@red.com with any feedback or suggestions for new topics. Stay tuned for more…
