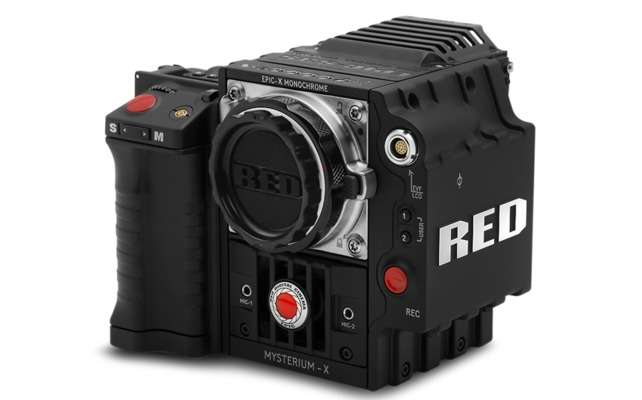

EPIC-X MONOCHROME NIKON PACKAGE

PLEASE EXPECT EXTENDED PROCESSING TIMES

This collection is also available with a DSMC Ti Canon Mount.

Engineered exclusively for B&W cinema and photographers, the EPIC-X MONOCHROME is rated natively at ASA 2000 and uses its unique sensor pattern to achieve optimum resolution and extended dynamic range. A dedicated B&W camera takes advantage of greater light sensitivity and tonal transfer in gradients, far exceeding the monochromatic quality of a desaturated color image. All EPIC accessories and modules are compatible with EPIC-X MONOCHROME. Made in the USA.

Collection includes EPIC-X MONOCHROME Brain, DSMC Ti Nikon Mount, DSMC Side SSD, and DSMC Side Handle.

NOTE: Currently RED Rocket does not decode EPIC-M MONOCHROME files.

SENSOR: 14 MEGAPIXEL MYSTERIUM-X™

PIXEL ARRAY: 5120 (h) x 2700 (v)

S/N RATIO: 66db

DYNAMIC RANGE: 13.5 stops, up to 18 stops with HDRx™

MAX IMAGE AREA: 5120 (h) x 2700 (v)

LENS COVERAGE: 27.7mm (h) x 14.6mm (v) x 31.4 mm (d)

DEPTH OF FIELD: Equivalent to S35mm (Motion) / APS-H (Still) lenses
Equivalent to 16mm (Motion) lens in 2K RAW

ACQUISITION FORMATS: 5K RAW (Full Frame, 2:1, 2.4:1 and Anamorphic 2:1)
4.5K RAW (2.4:1)
4K RAW (16:9, HD, 2:1 and Anamorphic 2:1)
3K RAW (16:9, 2:1 and Anamorphic 2:1)
2K RAW (16:9, 2:1 and Anamorphic 2:1)
1080p RGB (16:9)
720p RGB (16:9)

PROJECT FRAME RATES: 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 fps, all resolutions

DELIVERY FORMATS* 4K : DPX, TIFF, OpenEXR (RED RAY via optional encoder)
2K : DPX, TIFF, OpenEXR (RED RAY via optional encoder)
1080p, 720p: Quicktime, JPEG
Avid AAF, MXF. 1080p, 720p: H.264, .MP4

PROGRAM OUTPUT: HD-SDI Clean Feed
2K, 1080p, 720p
SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio

MONITOR OUTPUT: HD-SDI and HDMI with Frame Guides and Look Around
2K, 1080p, 720p
SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio

DIGITAL MEDIA REDMAG (SSD) Module: (64, 128, 256 and 512GB Media)

REDCODE™ 12 and 16-bit RAW : Compression choices of 18:1 to 3:1
1-120 fps 5K, 4.5K
1-150 fps 4K
1-200 fps 3K
1-300 fps 2K

AUDIO: 2 channel, uncompressed, 24 bit, 48KHz.
Optional 4 channel, and AES / EBU digital audio.

MONITORING OPTIONS: RED LCD 5"/9" Touchscreen Display
BOMB EVF™ High Definition Viewfinder

REMOTE CONTROL: Wireless, Ethernet, RS232, GPI Trigger

WEIGHT: 5lbs. Body only

CONSTRUCTION: Aluminum Alloy

TEMPERATURE RANGES: Operating Range: 0˚C to +40˚C (32˚F to 104˚F)
Storage Range: -20˚C to +50˚C (-4˚F to 122˚F)

  • FROM REDCINE-X

NOTE: Tech specs reflect both current and projected information. Everything is subject to change.

  • 1   1-Year Warranty
Products_store_red-armor

RED Armor - EPIC-X Brain

$2,850.00

RED ARMOR® is an extended warranty program dedicated to protecting you and your DSMC brain for up to 3 years. Upon purchasing, an additional 2 years of coverage is added to your standard 1-year warranty, extending your protection to a total of 3 years. With RED service centers located across the globe, you’ll never have trouble finding a RED specialist to help repair your DSMC brain. Shield yourself from the unexpected with the RED Armor extended warranty program.

Must be purchased before your DSMC brain is invoiced.
