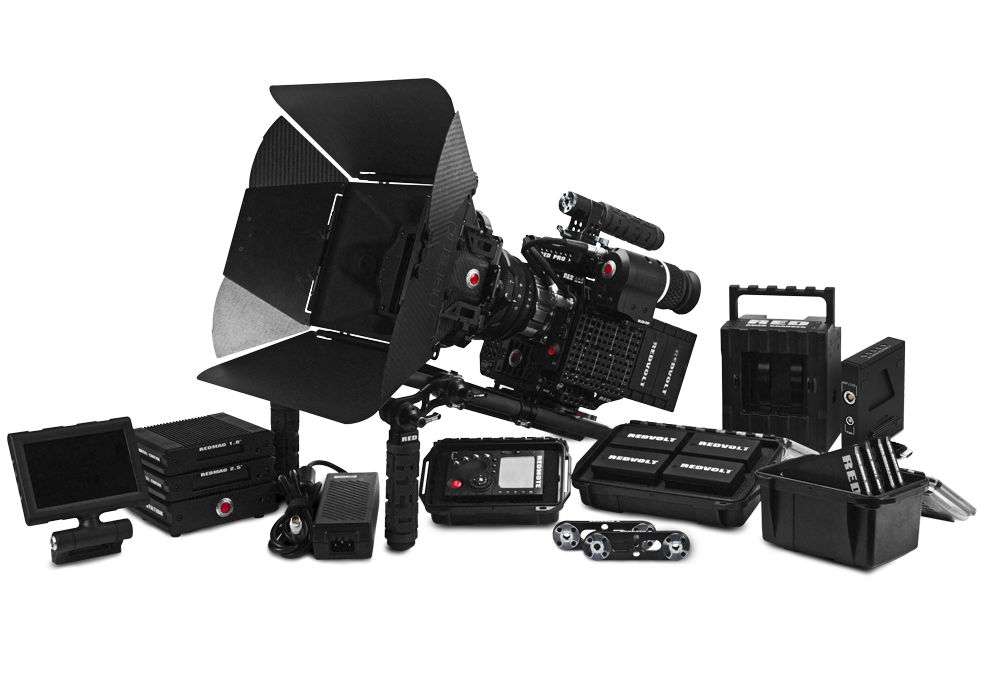

EPIC-X MYSTERIUM-X PRO COLLECTION

For the professional who wants it all, the EPIC-X MYSTERIUM-X PRO COLLECTION brings you all of the gear and accessories necessary to tackle any shoot. This package is compiled of the finest RED gear, carefully crafted and designed to ensure professional level quality from the field to the sound stage. The EPIC-X MYSTERIUM-X PRO COLLECTION has brought together the latest and greatest in RED technology and accessories to make it even easier to shoot EPIC.

For more information and instructions, you may refer to the Epic Operation Guide.

NOTE: When you add a collection to your cart, each item in the collection will appear individually. This allows the flexibility to add/subtract items to customize the collection to fit your personal needs. Lens is not included.

SENSOR: 14 MEGAPIXEL MYSTERIUM-X™

PIXEL ARRAY: 5120 (h) x 2700 (v)

S/N RATIO: 66db

DYNAMIC RANGE: 13.5 stops, up to 18 stops with HDRx™

MAX IMAGE AREA: 5120 (h) x 2700 (v)

LENS COVERAGE: 27.7mm (h) x 14.6mm (v) x 31.4 mm (d)

ACQUISITION FORMATS: 5K RAW (Full Frame, 2:1, 2.4:1 and Anamorphic 2:1)
4.5K RAW (2.4:1)
4K RAW (16:9, HD, 2:1 and Anamorphic 2:1)
3K RAW (16:9, 2:1 and Anamorphic 2:1)
2K RAW (16:9, 2:1 and Anamorphic 2:1)
1080p RGB (16:9)
720p RGB (16:9)

PROJECT FRAME RATES: 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 fps, all resolutions

DELIVERY FORMATS* 4K : DPX, TIFF, OpenEXR (RED RAY via optional encoder)
2K : DPX, TIFF, OpenEXR (RED RAY via optional encoder)
1080p RGB or 4:2:2, 720p 4:2:2 : Quicktime, JPEG
Avid AAF, MXF. 1080p 4.2.0, 720p 4:2:0 : H.264, .MP4

PROGRAM OUTPUT: HD-SDI Clean Feed
2K RGB, 1080p RGB or 4:2:2, 720p 4:2:2
SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio

MONITOR OUTPUT: HD-SDI and HDMI with Frame Guides and Look Around
2K RGB, 1080p RGB or 4:2:2, 720p RGB or 4:2:2
SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio

DIGITAL MEDIA REDMAG (SSD) Module: (64, 128, 256, 512GB Media)

REDCODE™ 12 and 16-bit RAW : Compression choices of 18:1 to 3:1
1-120 fps 5K, 4.5K
1-150 fps 4K
1-200 fps 3K
1-300 fps 2K

AUDIO: 2 channel, uncompressed, 24 bit, 48kHz.
Optional 4 channel, and AES / EBU digital audio.

MONITORING OPTIONS: RED LCD 5" or 9" Touchscreen Display
BOMB EVF™ High Definition Viewfinder

REMOTE CONTROL: Wireless, Ethernet, RS232, GPI Trigger

WEIGHT: 5lbs. Body only

CONSTRUCTION: Aluminum Alloy

TEMPERATURE RANGES: Operating Range: 0˚C to +40˚C (32˚F to 104˚F)
Storage Range: -20˚C to +50˚C (-4˚F to 122˚F)

FROM REDCINE-X

NOTE: Tech specs reflect both current and projected information. Everything is subject to change.

RED Armor - EPIC-X Brain

$2,850.00

RED ARMOR® is an extended warranty program dedicated to protecting you and your DSMC brain for up to 3 years. Upon purchasing, an additional 2 years of coverage is added to your standard 1-year warranty, extending your protection to a total of 3 years. With RED service centers located across the globe, you’ll never have trouble finding a RED specialist to help repair your DSMC brain. Shield yourself from the unexpected with the RED Armor extended warranty program.

Must be purchased before your DSMC brain is invoiced.
