Connections Include:
1x 2B Lemo DSMC standard input power
2x 2p 1B accessory power output
1x 9p 1B Gig-E
1x 10p 1B 232/422
1x 4p 0B CAN
1x HD-SDI video BNC
1x Time Code BNC
1x D-Tap output
1x RED MINI-MAG Input

Features:

• Proxy Recording – Record Proxy files to a RED MINI-MAG card and record REDCODE RAW to side SSD simultaneously. Choose between DNxHD, H.264 proxies or 720p, 1080p and 2k in ProRes 422 LT and HQ flavors.
• Wireless Motor Control – Integrated Wireless communication between 3rd party hand controller and Meizler module. Internal wiring to front outputs for clean cable routing.
• Wireless Video – Transmit 720p or 1080p uncompressed video at 5Ghz. Wireless video system has <1ms latency.
• Wireless Audio – Receive audio signals from REDsync Master (optional purchase)
• Wireless Timecode -Receive wireless timecode from REDsync Master ( optional purchase ) • 802.11b Compatible – Receive system control commands from custom iPad/iPhone/iTouch app through REDsync system
• System power is provided by V-Lock IDX battery plate (IDX and RED data switch) or RED standard 6 pin power port.
• Smart Hot-Swappable Power supported (battery can be switched when plugged into DC power without shutting camera off)
• CAN Port – Allows for hardwired communication between the 3ality Technica hand controller and Meizler module
• RS232/422 Port – Hardwired communication for iPad, iPhone and iTouch apps and 3rd party devices
• 3D Port – Sync two Meizler modules together to create a 3D lens control system
• HD-SDI Port – Output HD video
• REDmote Port – Charges and Communicates with REDmote via direct hardwire
• RED Monitor Port – Support Dual RED EVF/LCD operating simultaneously via monitor ports on Meizler and Side SSD. Touchscreen control capability on the RED monitor.
• Gig-E Port – Master/Slave the RED cameras
• 4 unregulated AUX power outputs - Two DC outputs power on right sidecar – One Left side D-tap on battery plate - One Front 3-pin Fischer for Cinetape or other accesories • Audio Port – Hardwired 2ch balanced audio input
• Headphone Jack – Outputs audio signals 3.5mm
• Lens Ports Front – Control 3rd party lens motors for Focus, Iris and Zoom

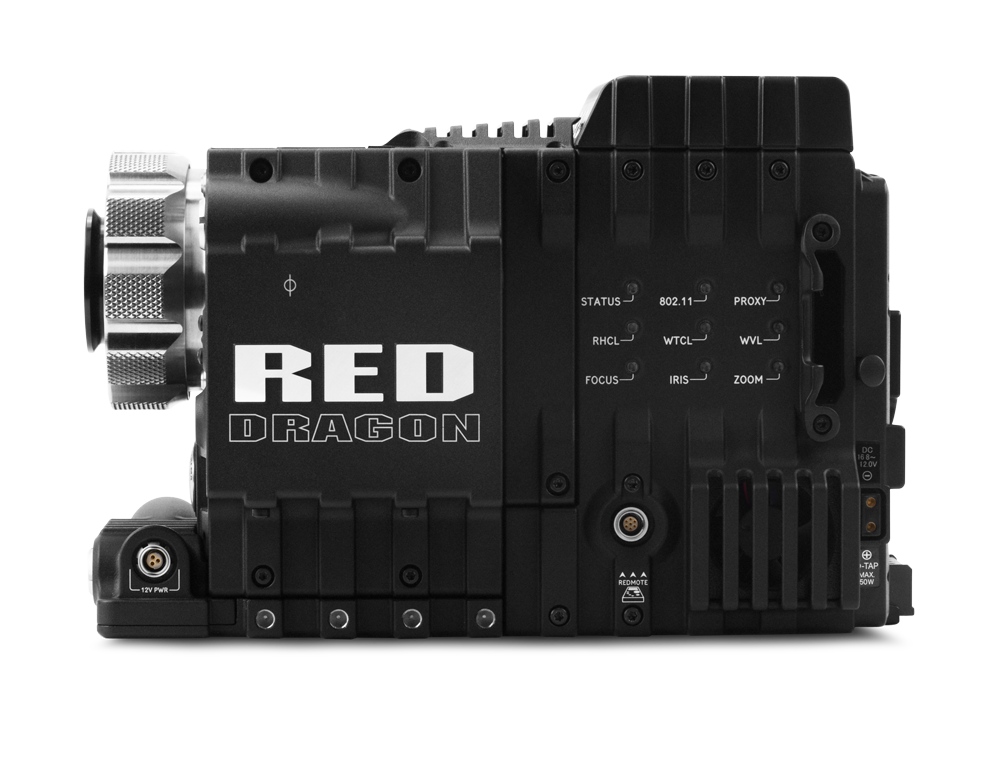

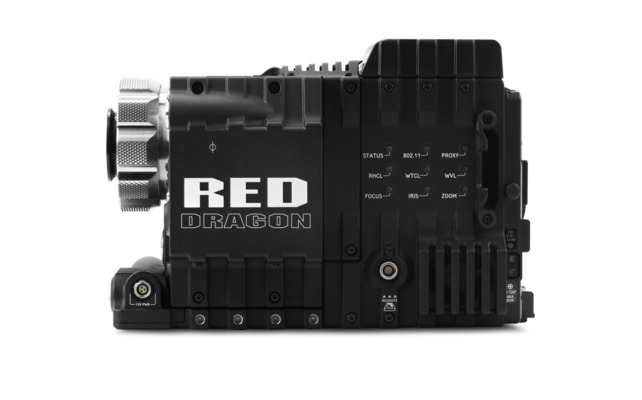

• LEDs - STATUS Indicates the Meizler module status state - 8.02.11 Indicates the wireless connection for Wireless. - PROXY Indicates the proxy recording status to the MINI-MAG - THCL Indicates the wireless connection for wireless hand controller - WTCL Indicates the wireless connection for wireless timecode - WVL Indicates the wireless connection for wireless video – FOCUS Indicates the focus motor status - IRIS Indicates the iris motor status - ZOOM Indicates the zoom motor status
• Wireless Internal Antennas - Interchangeable 6 external antenna module
• Switch from internal or external timecode - Internal timecode – Receive wireless timecode from REDsync Master (optional purchase) – External timecode – Receive timecode signal from an external source (i.e Lockit, Denecke and etc) via a BNC and genlock is produced internally
• Report camera state back to iPad app (optional purchase)
• Receive sidebar file metadata from REDsync Master (optional purchase)
• Receive GPS via iOS app (optional purchase)
