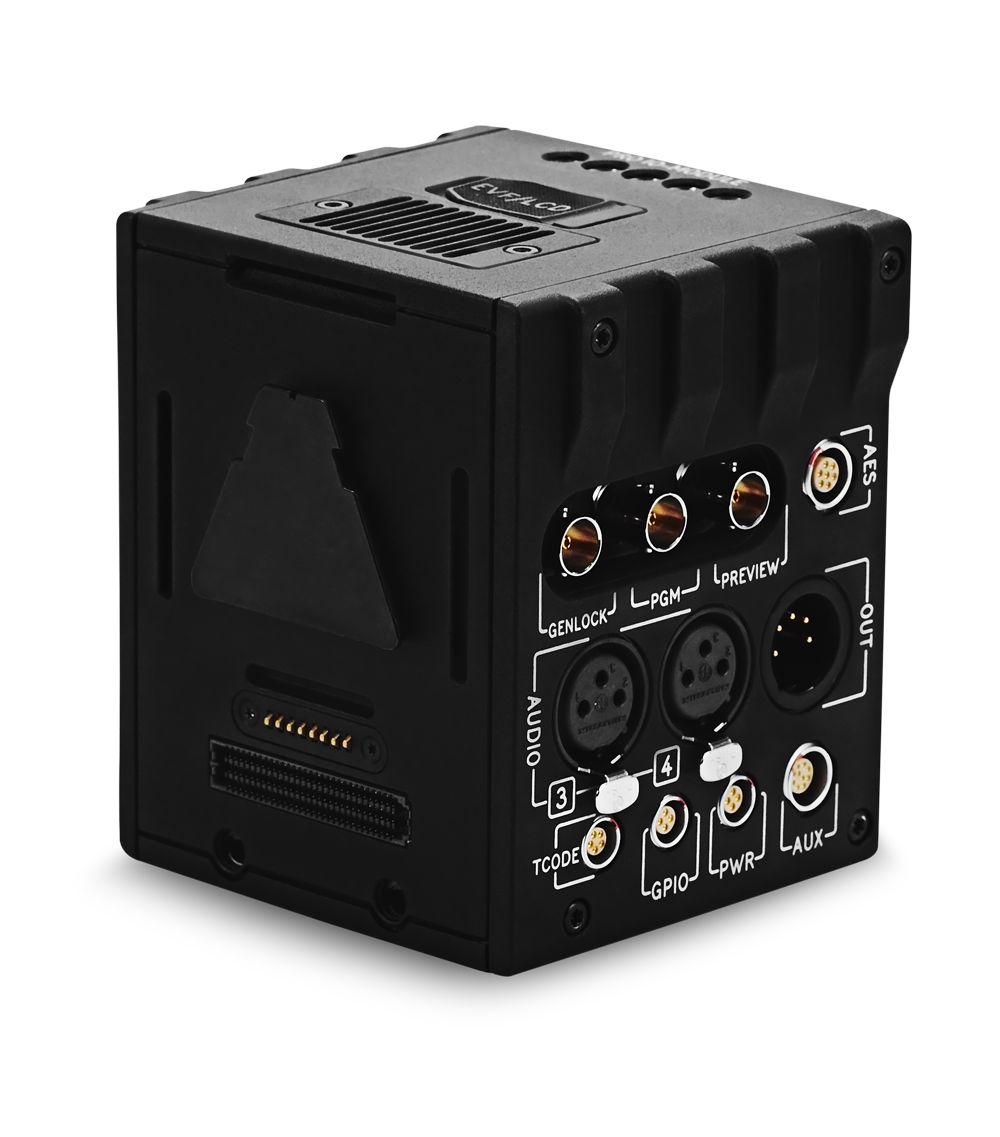

For advanced configurations, the Pro I/O Module attaches to the rear of your DSMC® BRAIN® to provide a central hub for essential I/O connections. Professional I/O support for audio and video is critical for large productions and the Pro I/O Module bundles them conveniently into one compact DSMC module.

A full list of connections can be found in the tech specs for this product.

Pro I/O Module
Dimensions Height: 4.29 in. (109 mm)
Width: 3.86 in. (98 mm)
Depth: 3.84 in. (98 mm)
Weight 2.4 lbs
Construction Aluminum Alloy
Connectors 1x Genlock / PGM / Preview (BNC)
1x AES
2x 3-Pin XLR Input
1x 5-Pin XLR Output
1x Timecode (5-Pin LEMO)
1x GPIO (4-Pin LEMO)
1x Power (4-Pin LEMO)
1x AUX (10-Pin LEMO)
1x LCD/EVF Output (LEMO, RED Display/EVF)
Current Draw 24 W when used with RED Touch 5.0" LCD
Auxiliary Power Output 1.5 A continuous load at 11.5 to 17 VDC
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature –20°C to 50°C (–4°F to 122°F)

SKU#: 720-0004
