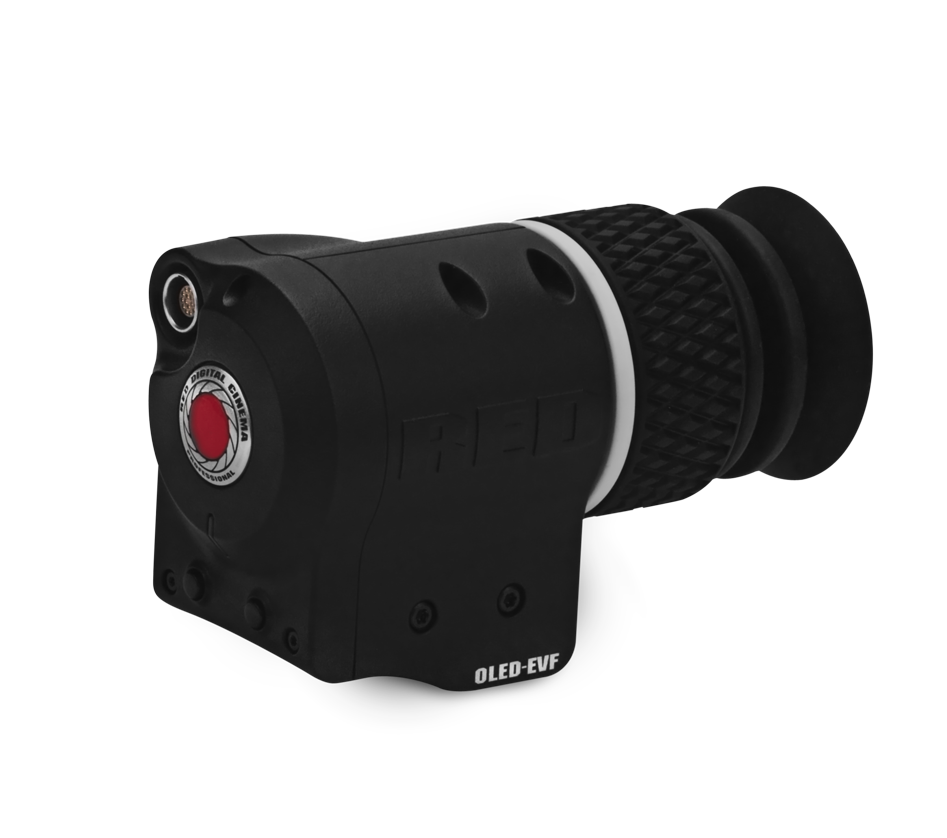

BOMB EVF [OLED]

RED BOMB EVF (OLED) brings advanced OLED technology into the field, providing truer blacks and more color accurate images when monitoring your image. Compact form factor, high-resolution, and rich 30-bit RGB color representation make the RED BOMB EVF (OLED) digital viewfinder the perfect choice for even the most critical eyes.

Dimensions: 5.2"/132mm (long) x 2.25"/57mm (diameter) x 3.2"/79mm (high)

Weight: 1.2lb / 0.6kg

Operating Temps: -10C to +40C (-14F to 104F)

Storage Temps: -30C to +70C (-22F to 158F)

Notable Features: Integrated eyepiece heater, 2 User Defined Buttons, Tally Indicator

Resolution: 1280 (wide) x 1024 (high) full-color

Bit Depth (Color): 30-bit RGB

Colorimetry: Rec 709 (nominal)

Contrast Ratio: >10000:1 typical

Display Modes: Free Run, Synchronous, Open Gate (Camera dependent)

Display Rate: Up to 60 FPS (Display mode and Camera Dependent)

Eyepiece Optics: Fully coated with – 4.0 to + 2.0 diopter correction range

Power: 6W (nominal) 12W (max) via camera interface
