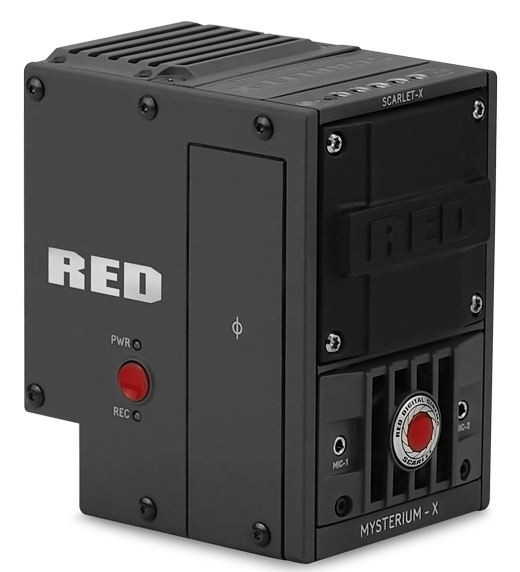

SCARLET-X is the latest addition to the DSMC line of cameras, capable of capturing 5K stills and 4K motion footage. With advanced capabilities such as HDRx alongside a native 13.5 stops of dynamic range, SCARLET-X is the perfect hybrid camera for cinematographers and photographers alike. Made in the USA.
AC Power Adaptor is included.
SENSOR: 14 MEGAPIXEL MYSTERIUM-X™
PIXEL ARRAY: 5120 (h) x 2700 (v)
DYNAMIC RANGE: 13.5 stops, up to 18 stops with HDRx™
6 fps with 5K FF and HDRx on
12 fps with 4K HD and HDRx™ on
MAX IMAGE AREA: 5120 (h) x 2700 (v)
LENS COVERAGE: 27.7mm (h) x 14.6mm (v) x 31.4 mm (d)
LENS MOUNT: Brain Only
MAX DEPTH OF FIELD: Equivalent to S35mm (Motion) / APS-H (Still) lenses
ACQUISITION FORMATS: 5K FF REDCODE RAW (Full Frame)
4K HD REDCODE RAW
3K HD REDCODE RAW
1080p REDCODE RAW
1K REDCODE RAW
PROJECT FRAME RATES: 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.97
MONITOR/PROGRAM OUTPUT: HD-SDI and HDMI with Frame Guides and Look Around or Clean Feed 1080p 4:2:2, 720p 4:2:2 SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio
DIGITAL MEDIA REDMAG (SSD) Module: (48, 64, 128, 256 and 512GB Media)
REDCODE™ 16-bit RAW Processing: Compression choices of 18:1 to 3:1
1-12 fps 5K FF
1-30 fps 4K HD
1-48 fps 3K HD
1-60 fps 1080p HD
1-120 fps 1K
AUDIO: 2 channel, uncompressed, 24 bit, 48KHz.
Optional 4 channel, and AES / EBU digital audio.
MONITORING OPTIONS: RED LCD 5" Touchscreen Display
BOMB EVF™ High Definition Viewfinder
REMOTE CONTROL: REDLINK Wireless, Ethernet, RS232, GPI Trigger
WEIGHT: 5lbs. Body only
CONSTRUCTION: Aluminum Alloy
COLOR: Battleship Gray Brain Body. All DSMC Modules Black
TEMPERATURE RANGES: Operating Range: 0˚C to +40˚C (32˚F to 104˚F)
Storage Range: -20˚C to +50˚C (-4˚F to 122˚F)
NOTE: Tech specs reflect both current and projected information. Everything is subject to change.
