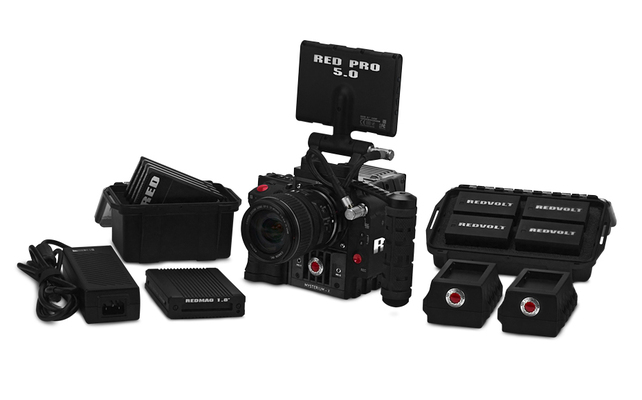

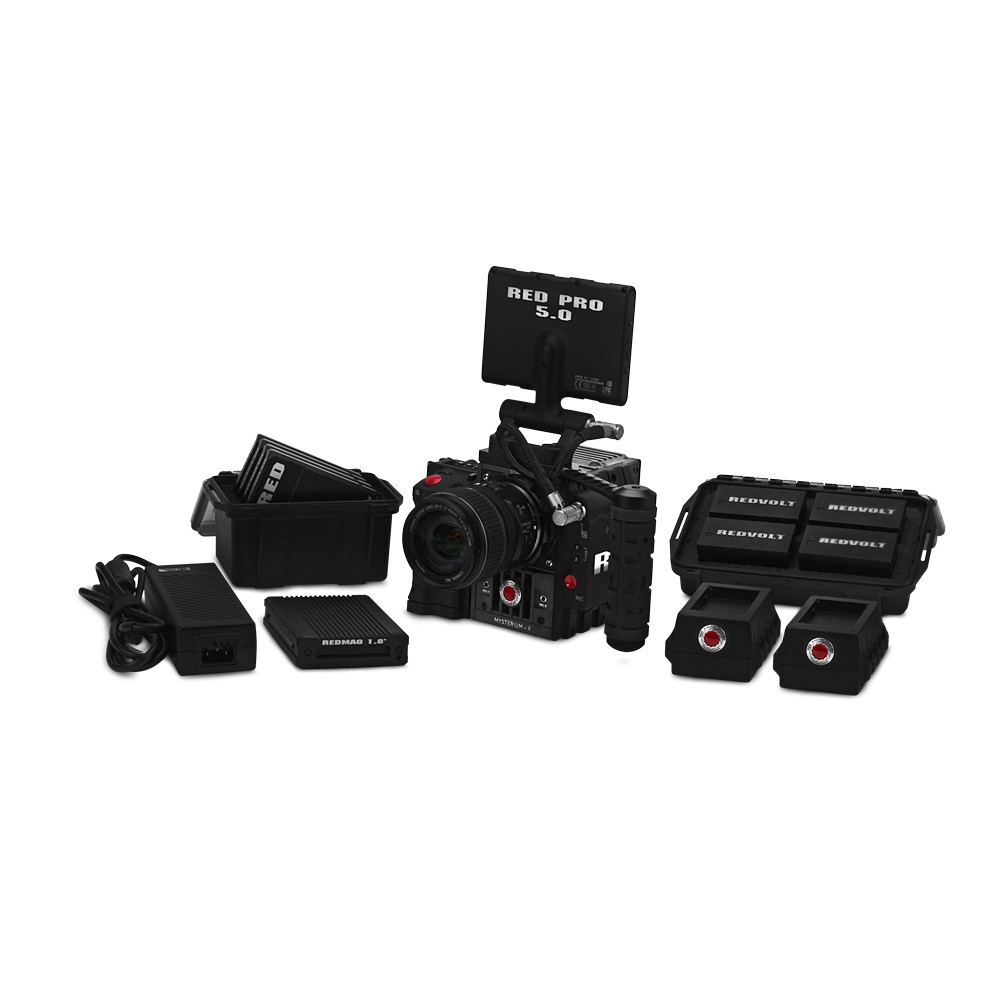

This product currently ships with the RED Touch 7.0" LCD, NOT the RED Touch 5.0" LCD (as shown in the picture above).

Whether your interest is in motion or stills, the SCARLET-X Lightweight Collection has compiled the must-have DSMC® accessories that cinematographers and photographers want. The DSMC Side Handle offers familiar SLR functionality and control, while also providing a comfortable handheld configuration when used with the Outrigger Handle. With the ability to use a vast arsenal of Canon lenses, the SCARLET-X Lightweight Collection will never leave you short of opportunities to get the look you want.

NOT INCLUDED: 2x 1/4-20 bolts (1" in length) for mounting the RED TOUCH 5.0" LCD and the OUTRIGGER HANDLE together. Lens is also not included.

NOTE: When you add a collection to your cart, each item in the collection will appear individually. This allows the flexibility to add/subtract items to customize the collection to fit your personal needs.

Sensor 14 Megapixel MYSTERIUM-X
Pixel Array 5120 (h) x 2700 (v)
Max Image Area 5120 (h) x 2700 (v)
Dynamic Range 13.5+ stops, Up to 18 stops with HDRx®
S/N Ratio 66 dB
Lens Coverage 27.7mm (h) x 14.6mm (v) x 31.4 mm (d)
Max Depth of Field Equivalent to S35mm (Motion)/APS-H (Still) lenses
Acquisition Formats 5K RAW (Full Frame, 2:1, 2.4:1, 16:9, 1.22:1, and Anamorphic 2:1, 1.33:1)

4K RAW (Full Frame, 2.4:1, 16:9)

3K RAW (Full Frame, 2.4:1, 16:9)

2K RAW (Full Frame, 2.4:1, 16:9 “HD”)

1080p RGB (16:9)

720p RGB (16:9)
Project Timebase 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 fps, all resolutions
REDCODE® Compression choices of 18:1 to 3:1
1–12 fps 5K (Full Frame)
1–30 fps 4K (Full Frame)
1–48 fps 3K
 (Full Frame)
1–60 fps 2K (Full Frame)
1–120 fps 1K (Full Frame)
For more information on available REDCODE values, see the DSMC Media Operation Guide
Delivery Formats1 4K: DPX, TIFF, OpenEXR (.RED via RRencode Plugin)
2K: DPX, TIFF, OpenEXR (.RED via RRencode Plugin)
1080p RGB 4:2:2, 720p 4:2:2 : Quicktime, JPEG, Avid AAF, MXF
1080p 4.2.0, 720p 4:2:0 : H.264, .MP4
Program Output 3G-SDI (HD-SDI) Clean Feed
2K RGB, 1080p RGB or 4:2:2, 720p 4:2:2
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
Monitor Output 3G-SDI (HD-SDI) and HDMI with Frame Guides and Lookaround
2K RGB, 1080p RGB or 4:2:2, 720p RGB or 4:2:2
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
Monitoring Options RED Touch 5.0" LCD
RED Touch 7.0" LCD
RED Touch 9.0" LCD
BOMB EVF (LCOS) High Definition Viewfinder
BOMB EVF (OLED) High Definition Viewfinder
Digital Media (SSD) REDMAG® 1.8", RED MINI-MAG®
Audio 2 channel, uncompressed, 24-bit 48 kHz
Optional 4 channel, and AES/EBU digital audio
Remote Control REDLINK® Wireless, Ethernet, RS232, GPI Trigger
Construction Aluminum Alloy
Weight 5 lbs (BRAIN only)
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature Range –20°C to 50°C (–4°F to 122°F)
