FOR SCARLET-X W/SIDE SSD AND LENS MOUNTview program details

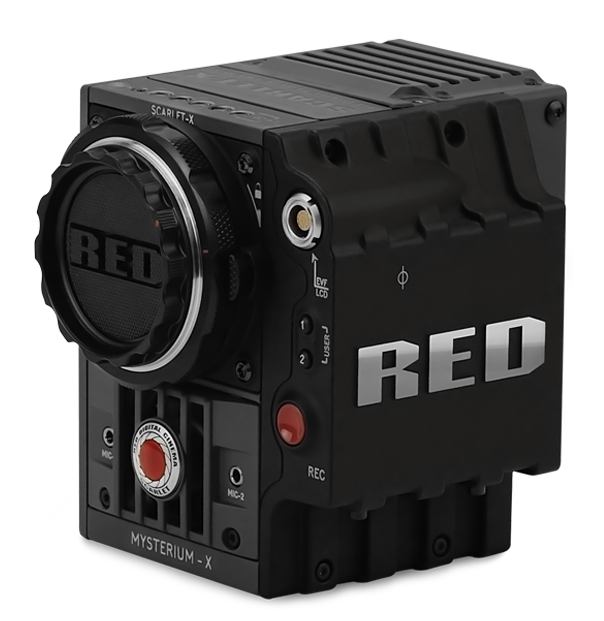

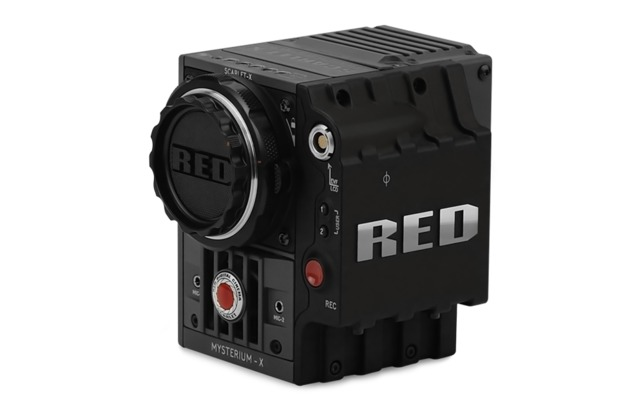

SCARLET-X W/ SIDE SSD AND LENS MOUNT camera package is the latest addition to the DSMC line, capable of capturing 5K stills and 4K motion footage. With advanced capabilities such as HDRx alongside a native 13.5 stops of dynamic range, SCARLET-X is the perfect hybrid camera for cinematographers and photographers alike. Made in the USA.
For more information and instructions, you may refer to the Scarlet Operation Guide.
SENSOR: 14 MEGAPIXEL MYSTERIUM-X™
PIXEL ARRAY: 5120 (h) x 2700 (v)
DYNAMIC RANGE: 13.5 stops, up to 18 stops with HDRx™
6 fps with 5K FF and HDRx on
12 fps with 4K HD and HDRx™ on
MAX IMAGE AREA: 5120 (h) x 2700 (v)
LENS COVERAGE: 27.7mm (h) x 14.6mm (v) = 31.4 mm (d)
LENS MOUNT: DSMC Lens Mount
MAX DEPTH OF FIELD: Equivalent to S35mm (Motion) / APS-H (Still) lenses
ACQUISITION FORMATS: 5K FF REDCODE RAW (Full Frame)
4K HD REDCODE RAW
3K HD REDCODE RAW
1080p REDCODE RAW
1K REDCODE RAW
PROJECT FRAME RATES: 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.97
MONITOR/PROGRAM OUTPUT: HD-SDI and HDMI with Frame Guides and Look Around or Clean Feed 1080p 4:2:2, 720p 4:2:2 SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio
DIGITAL MEDIA REDMAG (SSD) Module: (48, 64, 128, 256 and 512GB Media)
REDCODE™ 16-bit RAW Processing: Compression choices of 18:1 to 3:1
1-12 fps 5K FF
1-30 fps 4K HD
1-48 fps 3K HD
1-60 fps 1080p HD
1-120 fps 1K
AUDIO: 2 channel, uncompressed, 24 bit, 48KHz.
Optional 4 channel, and AES / EBU digital audio.
MONITORING OPTIONS: RED LCD 5"/9" Touchscreen Display
BOMB EVF™ High Definition Viewfinder
REMOTE CONTROL: REDLINK Wireless, Ethernet, RS232, GPI Trigger
WEIGHT: 5lbs. Body only
CONSTRUCTION: Aluminum Alloy
COLOR: Battleship Gray Brain Body, DSMC Lens Mount (Black Aluminum/Silver Titanium) and Black Side SSD. All DSMC Modules Black
TEMPERATURE RANGES: Operating Range: 0˚C to +40˚C (32˚F to 104˚F)
Storage Range: -20˚C to +50˚C (-4˚F to 122˚F)
NOTE: Tech specs reflect both current and projected information. Everything is subject to change.
