Product Info

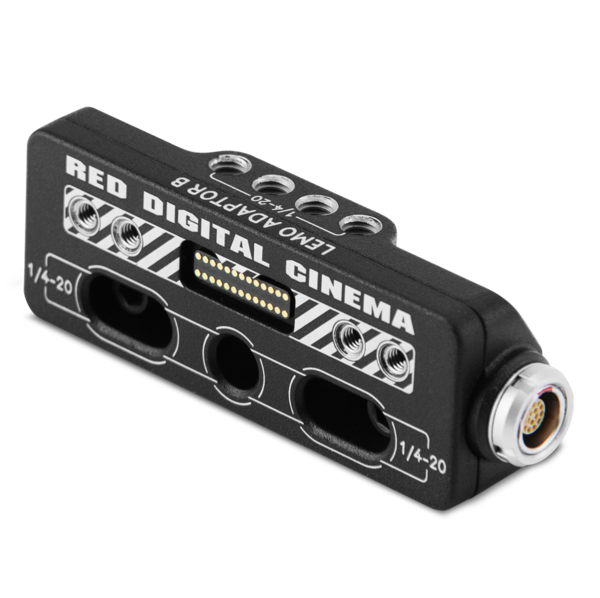

The DSMC2® LCD/EVF Adaptor B enables you to use the DSMC2 RED Touch 7.0" LCD or DSMC2 RED Touch 4.7" LCD with your existing RED EPIC® or SCARLET® camera BRAIN. The DSMC2 LEMO Adaptor B converts the display signal from a pogo connection to a legacy EVF/LCD port. The DSMC2 LCD/EVF Adaptor B is designed to mount to your EPIC or SCARLET camera BRAIN® using standard 1/4-20 mounting holes.
When used along with the DSMC2 LCD/EVF Adaptor A, this adaptor enables you to mount a DSMC2 RED Touch 7.0" LCD away from the camera BRAIN and onto a NOGA arm or other stable mounting point.
OBSOLESCENCE OBSOLETE® is the ability to modernize your arsenal with the latest technology; while keeping your veteran equipment in play.
DSMC2 LCD/EVF Adaptor B
| DIMENSIONS | Height: 0.82 in. (20.75 mm) Width: 3.84 in. (97.5 mm) Depth: 1.35 in. (34.3 mm) |
|---|---|
| WEIGHT | 0.23 lbs (102 g) |
| MATERIAL | Aluminum |
| BRAIN CONNECTION | 16-Pin 1B socket |
| LCD/EVF CONNECTION | DSMC2 LCD/EVF pogo connector (26-Pin) |
| BRAIN MOUNTING | 2x 1/4-20 captive mounting screws |
| LCD/EVF MOUNTING | M4 mounting holes on adaptor top surface |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
| OPERATING HUMIDITY | 0% to 85%, non-condensing |
| STORAGE HUMIDITY | 0% to 85%, non-condensing |
| FIRMWARE COMPATIBILITY | Compatible with all DSMC2 firmware versions |
Tech specs reflect both current and projected information. Everything is subject to change.
