V-RAPTOR

SKU 710-0353-02

$35,500.00
Finance it for as low as $710/mo* Once approved, a financing representative will contact you to complete the transaction.
IN STOCK
Orders placed today are expected to ship in 1–2 business days
QUESTIONS? Call us +1 (949) 536-7506

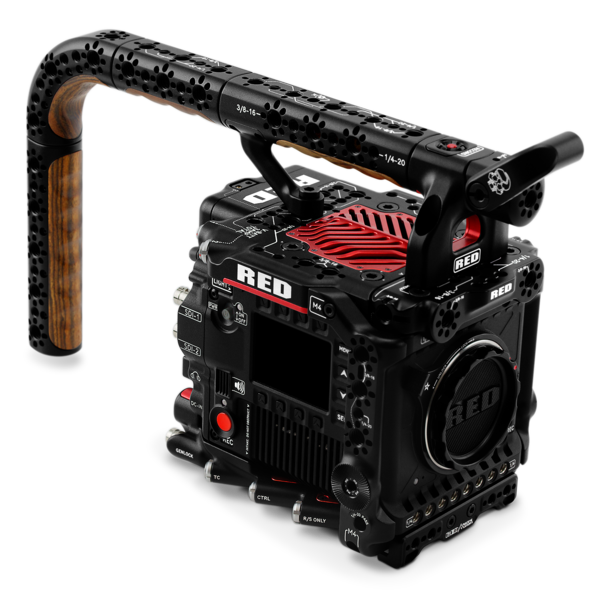

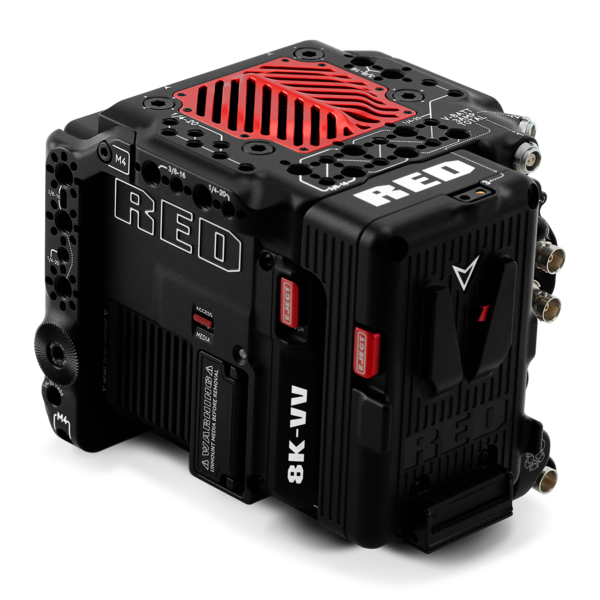

V-RAPTOR™ 8K VV is the most powerful and advanced RED® cinema camera ever. As the brand’s new flagship system and sensor, as well as the first entrant into the new DSMC3™ generation of cameras, V-RAPTOR stands alone at the forefront of digital image capture technology.


Featuring a groundbreaking multi-format 8K sensor- with the ability to shoot 8K large format or 6K S35, it unlocks the largest lens selection of any comparable camera on the market and allows shooters the ability to always deliver at over 4K. The sensor also boasts the highest recorded dynamic range and cleanest shadow performance of any RED camera. In addition, the V-RAPTOR sensor scan time is 2x faster than any previous RED camera and it allows users to capture up to 600 fps at 2K. V-RAPTOR will also continue to feature RED’s proprietary REDCODE RAW codec, allowing users to capture 16-bit RAW, and leverage RED’s latest IPP2 workflow and color management.


Along with a new flagship sensor, the V-RAPTOR features a modernized platform in an amazingly compact package weighing in at barely over 4 lbs. With 2 4K 12G-SDI outputs, XLR audio and phantom power via adapter, and 1080p livestream, this system can handle most anything a shooter can throw at it.



Additionally, the V-RAPTOR/V-RAPTOR XL and the DSMC3 platform features advanced connectivity solutions which enable applications such as RED Connect for 8K R3D cinematic live streaming and remote record, remote control and monitoring, in-camera Frame.io integration, AWS direct upload, and more.

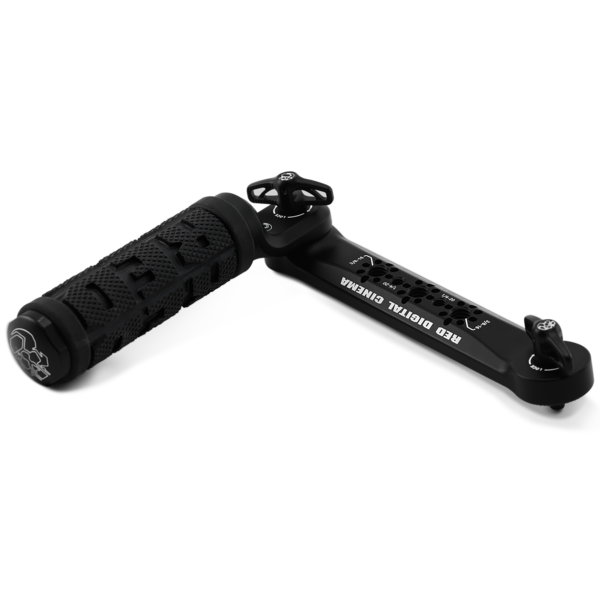

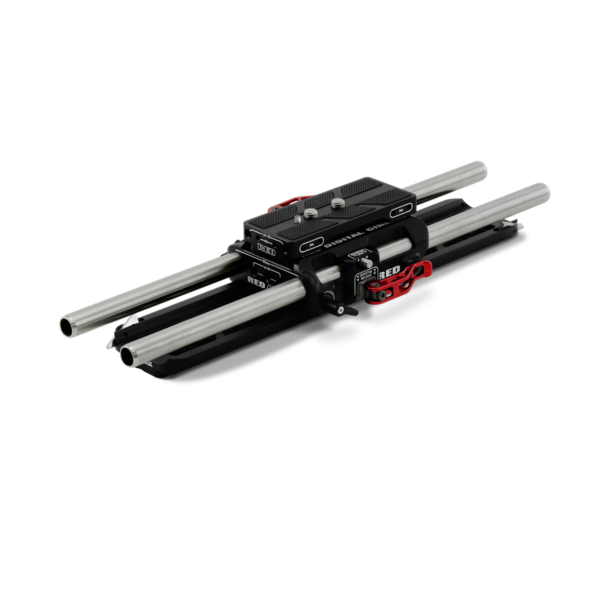

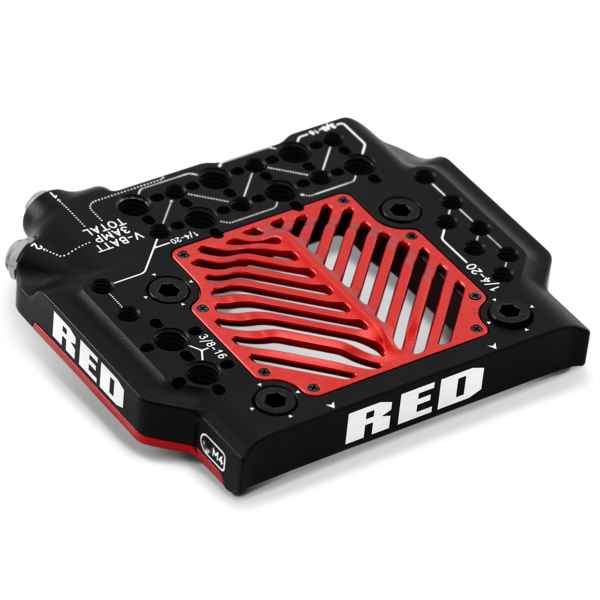

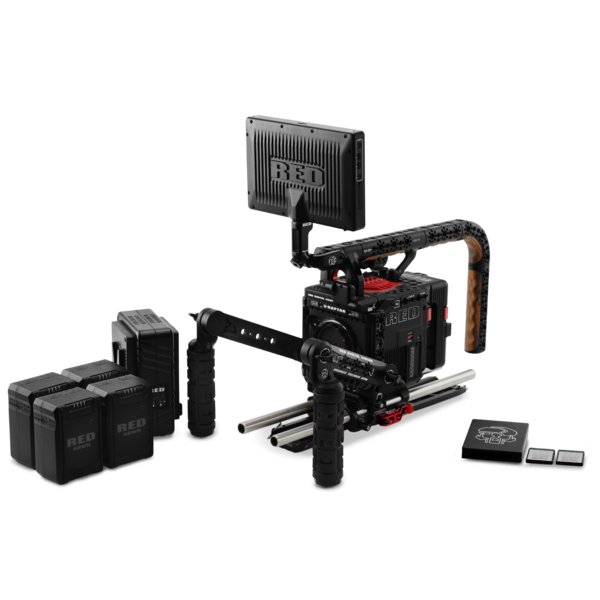

The V-RAPTOR™ Production Pack is a comprehensive and robust pre-bundled setup that is perfect for professional work and studio set ups. It includes:



Explore Additional Approved 3rd Party Accessories and Lens Mounts

** Limited Time Offer. Available in Select Markets Only, Contact RED For More Info. Promotional Period Ends 12/30/22

V-RAPTOR
SENSOR TYPEV-RAPTOR™ 8K VV 35.4 Megapixel CMOS
EFFECTIVE PIXELS8192 x 4320
SENSOR SIZE40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE17+ stops
MOUNT TYPEIntegrated RF mount with RF lens support
Supports Canon EF lenses via compatible Canon RF to EF mount adapters
Accepts other Canon RF mount-based lens adaptors for diverse lens choices
MAX DATA RATESUp to 800 MB/s using RED branded or other qualified CFexpress media cards[1]
REDCODE® RAW MAX FRAME RATES120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
BEST AVAILABLE REDCODE® SETTINGSREDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
REDCODE® RAW
ACQUISITION FORMATS
8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
APPLE PRORESDedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096 x 2160)
Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080)
CONSTRUCTIONAluminum Alloy
WEIGHT4.03 lbs (without body cap and CFexpress card)

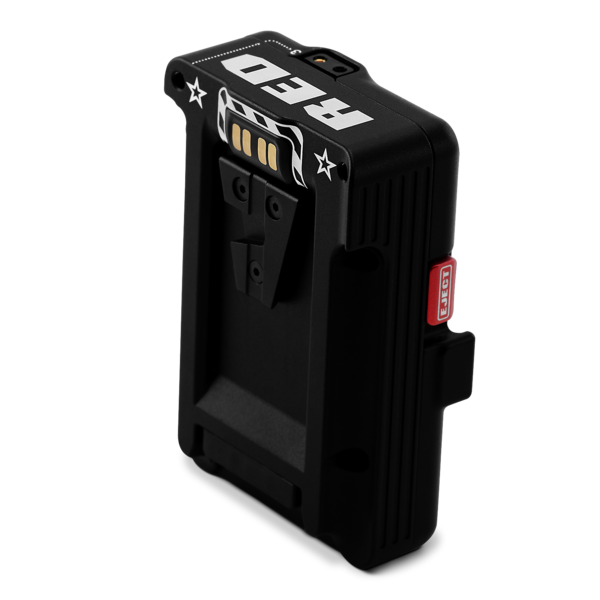

BATTERY TYPEIntegrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]
DC POWER INPUT11-17V via 6-pin DC-IN
OPERATING TEMPERATURE0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE–20°C to 50°C (–4°F to 122°F)
STORAGE RELATIVE HUMIDITY0% to 85% non-condensing
COLOR MANAGEMENTImage Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import of CDLs
AUDIOIntegrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz

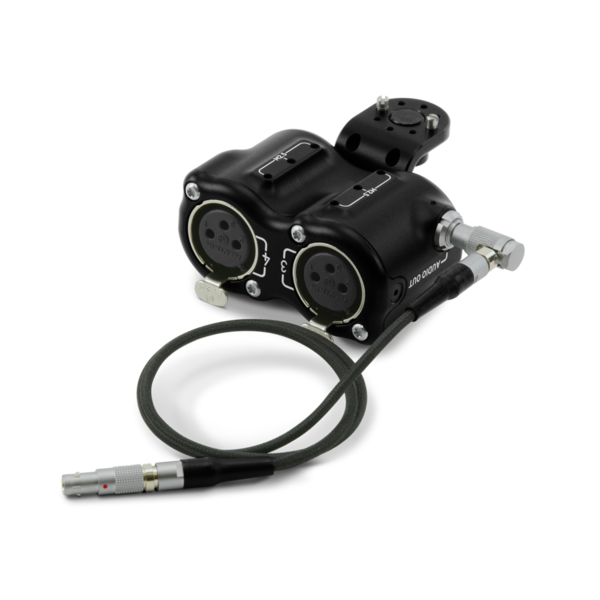

Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz
AUTOFOCUSContrast and Phase Detect
REMOTE CONTROLWi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector

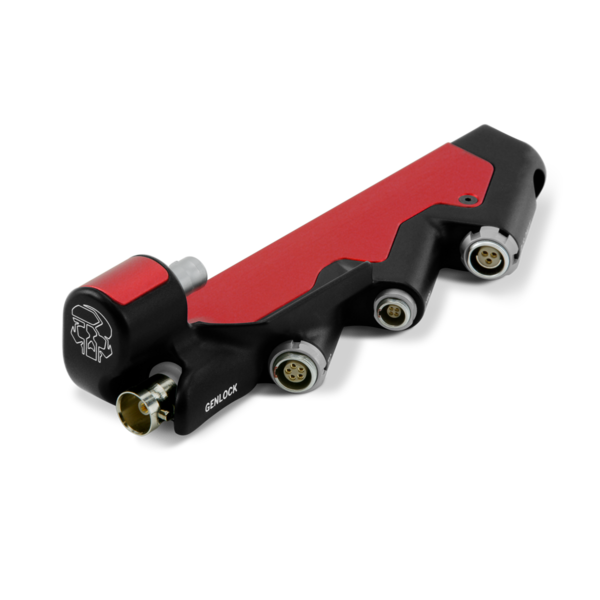

Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload
MONITOR OUTPUTSIntegrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

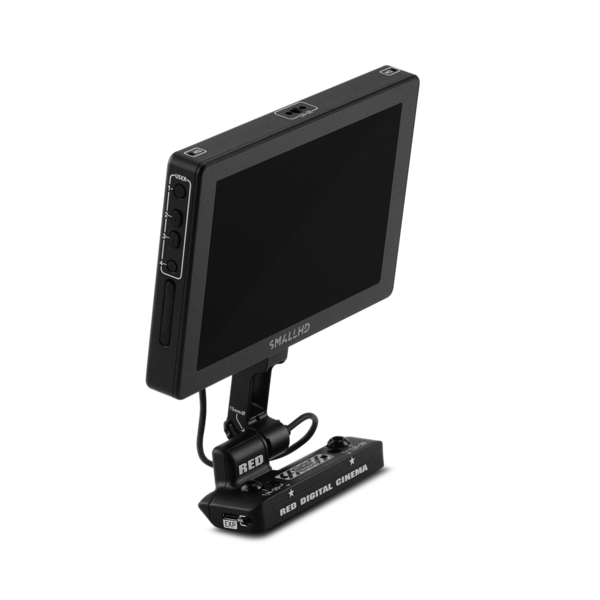

MONITOR OPTIONSDSMC3™ RED® Touch 7.0” LCD
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4" LCD for camera control (no preview video)
RED CONTROL Access full camera controls and live preview from iOS or Android devices
Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C

1. For more information on compatible accessories, go to red.com/third-party-accessories

Tech specs reflect both current and projected information. Everything is subject to change.
