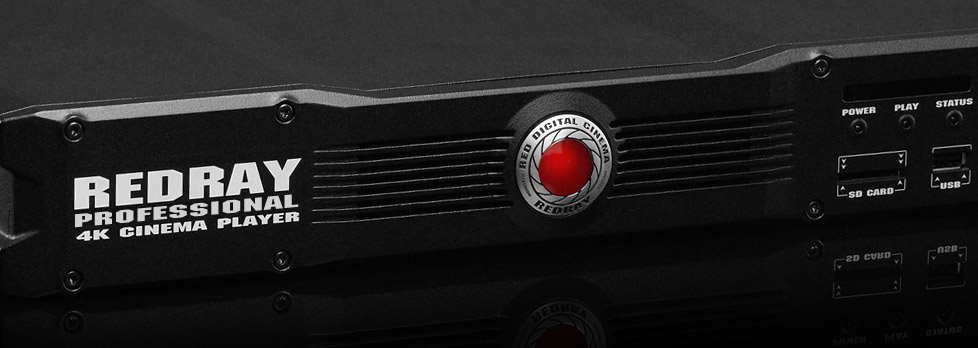

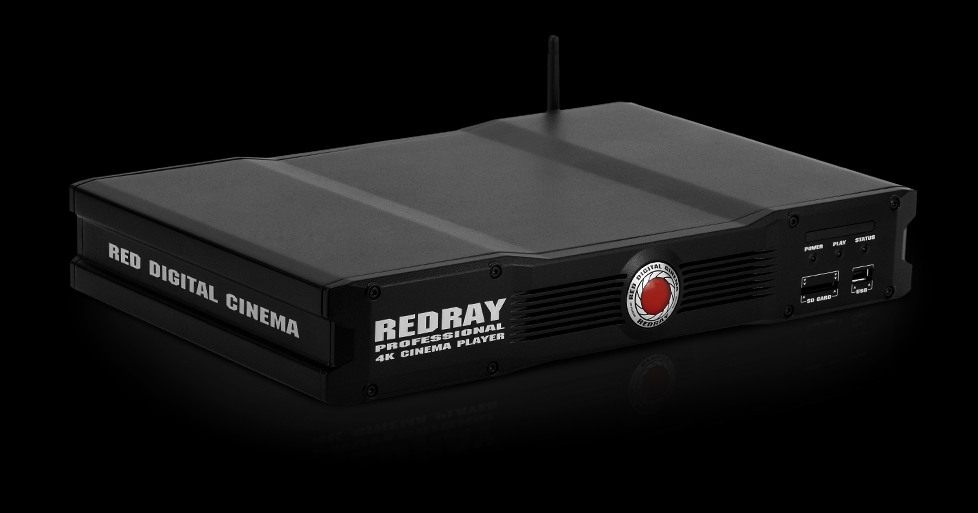

REDRAY® is the first 4K Cinema Player to bring ultra high-definition content to your home, business or local theater using internet file based distribution. Capable of playing HD, 3D or 4K media, REDRAY utilizes a 1TB internal drive to store all of your content. Advanced networking and low data rates let you distribute content via FTP transfer or solid-state media. REDRAY makes playback of 4K content as simple as HD – but at 4 times the image quality.
Nothing compares to the ultra high-definition of 4K content and REDRAY brings that immersive visual experience directly to you. More picture information means more detail and 4K resolution brings you closer to your content than ever before. REDRAY provides the clearest image – and choice – for anyone looking for big picture and superior quality.

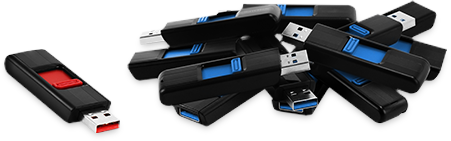

Advanced RED codec technology generates feature length 4K files small enough to fit on a USB flash drive. With a compressed data rate under 2.5MB/s, you can deliver your 4K content worldwide via OTT media networks at remarkably low cost and high efficiency. Secure encryption is also available to protect your media from unauthorized viewing or duplication. For the first time, distributing 4K content is as simple as HD.
Whether working with 4K RED camera files or HD, REDRAY delivers all of your content in its absolute purest form. While commonly-used distribution systems such as Blu-ray® encode HD content with limited 8-bit 4:2:0 color precision, REDRAY supports 12-bit 4:2:2 precision at 4K resolution – taking the big screen viewing experience to an exciting new level with only a fraction of the storage requirements.
There is nothing like a true 4K 3D experience and REDRAY delivers with playback of 3D media at up to 60 fps per eye in 4K. Whether in a home theater or at the office, REDRAY’s flexible HDMI 1.4 connectors let you leverage the latest 3D and 4K LCD flat panel and projection display technologies.

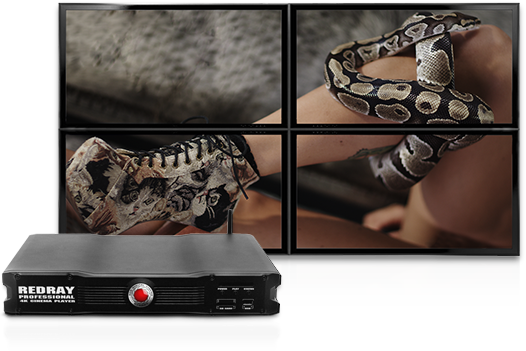

Digital signage leads the future of advertising and REDRAY serves as the perfect distribution platform. Each REDRAY is capable of synchronized video playback to four 1080p displays or two 4K display panels; which may be arranged in any physical configuration. Multiple REDRAY players can be genlocked together to serve large video wall applications, letting nothing stand between you and a lasting visual impact.

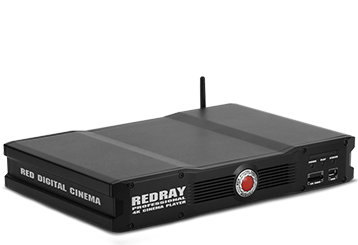

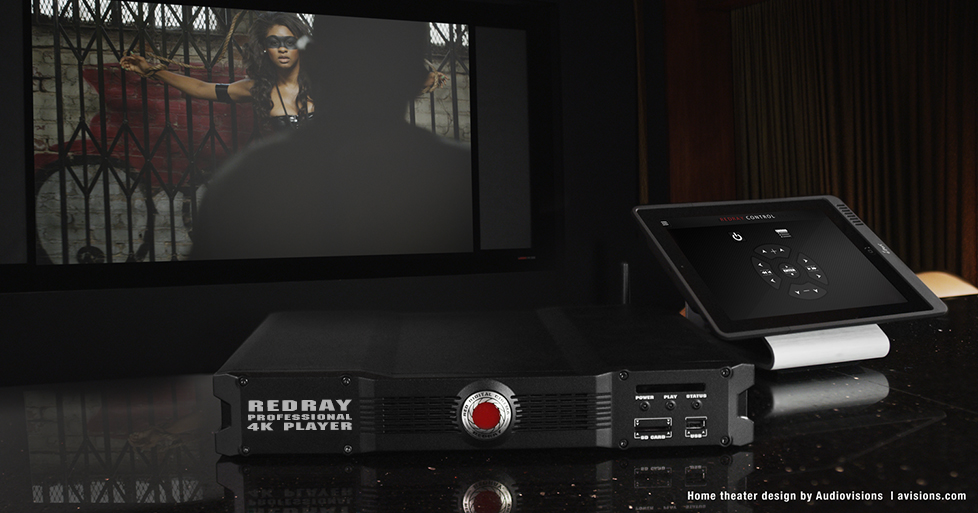

Connect and control your REDRAY player using the included infrared remote or the REDRAY iOS application and REDRAY’s 802.11n wireless connection. You can use either device as an interactive remote to browse, select, and play content stored on your REDRAY player. Gigabit Ethernet ports support system automation and hard-wired GPIO triggers to contribute to overall connectivity options.

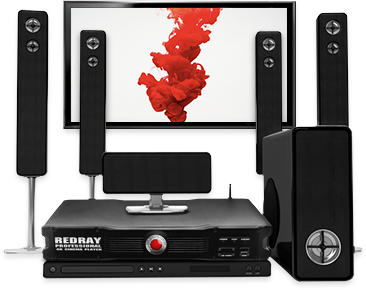

When it comes to watching your favorite content, audio fidelity is as essential as image quality. REDRAY delivers with 7.1 channels of pristine quality 24-bit 48 KHz audio, providing you a holistic cinematic package. Simply plug into your AV receiver via an HDMI cable and immerse yourself in an experience you can see, hear and feel.

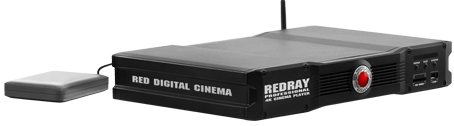

Each REDRAY player contains 1TB of available internal storage, capable of holding over 100 hours of 4K media. If you need more space, REDRAY features flexible storage options to securely archive your media including external USB drive, high capacity e-SATA based RAID storage or an Ethernet based NAS system.

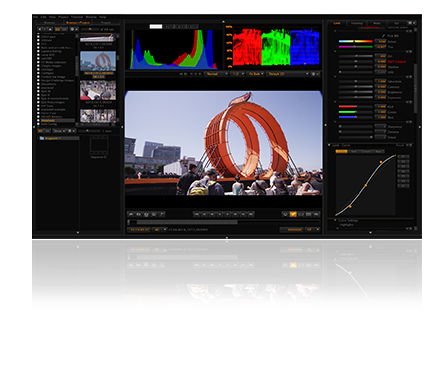

Take your R3D, TIFF, DPX and WAV files from post-production into REDCINE-X PRO and discover just how easy it is to encode your content for REDRAY. The simple drag-and-drop interface of the RREncode plugin means there are no complex menus to worry about. RED only exports content at the highest possible quality, meaning you’ll never settle for anything less than perfection.
| DIMENSIONS | 316 × 61mm x 260 mm ( 12.4 × 2.4 × 10.2″ ) |
|---|---|
| WEIGHT | 5.9 Lbs |
| MATERIAL | Aluminum |
| OPERATING TEMPS | Zero to 40 C |
| STORAGE TEMPS | Minus 5 to 60C |
| NOTABLE FEATURES | Network based 4K 3D Playback System. |
| ADDITIONAL NOTES | Unique to RED, this product is the only available 4K resolution signal source for Ultra HD flat panel displays and 4K projectors, may also be used for digital signage applications to drive up to four 1080p displays. |
| RESOLUTION | Up to 4096 × 2160 pixels, 2D or 3D |
| BIT-DEPTH (COLOR) | YCbCr 12-bit 4:2:2 or RGB 8-bit 4:4:4 |
| COLORIMETRY | ITU-R BT.709 |
| PROGRAM OUTPUT | 4K DCI, Ultra HD, 1080p, 720p |
| PREVIEW OUTPUT | 1080p, 720p |
| MEDIA SECURITY | REDCrypt™ digital media encryption |
| REMOTE CONTROL | IR, 802.11n, Ethernet |
| GENLOCK | RS170A Tri-level Sync |
| PLAYBACK FRAME RATES | 24, 25, 30, 48, 50, 60 fps |

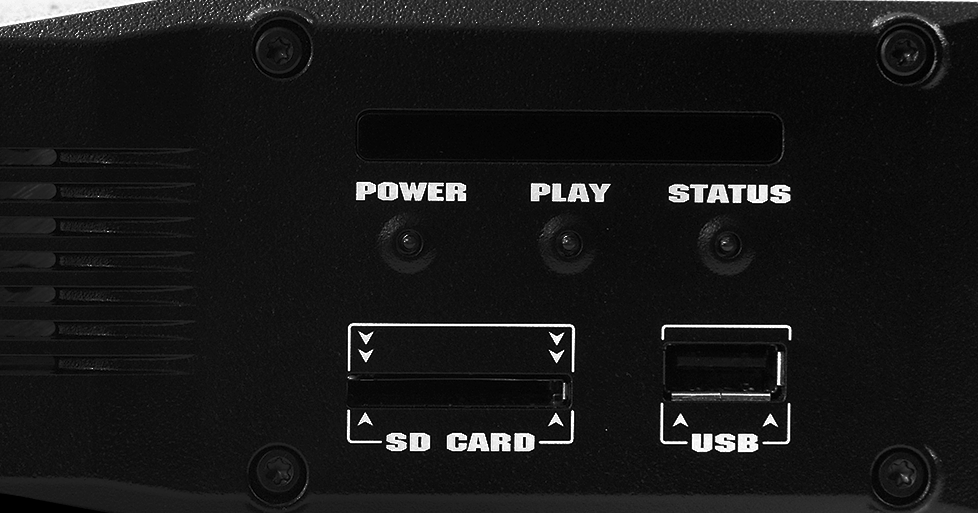

| DIGITAL MEDIA | Internet download, SD Card or USB-2 flash media |
| VIDEO FILE FORMAT | .RED (4K), .MP4 (1080p, 720p) |
| AUDIO FILE FORMAT | .RED (up to 7.1 Ch) .MP4 (Stereo) |
| AUDIO OUTPUT | Up to 7.1 channel LPCM, 24-bit 48Khz |

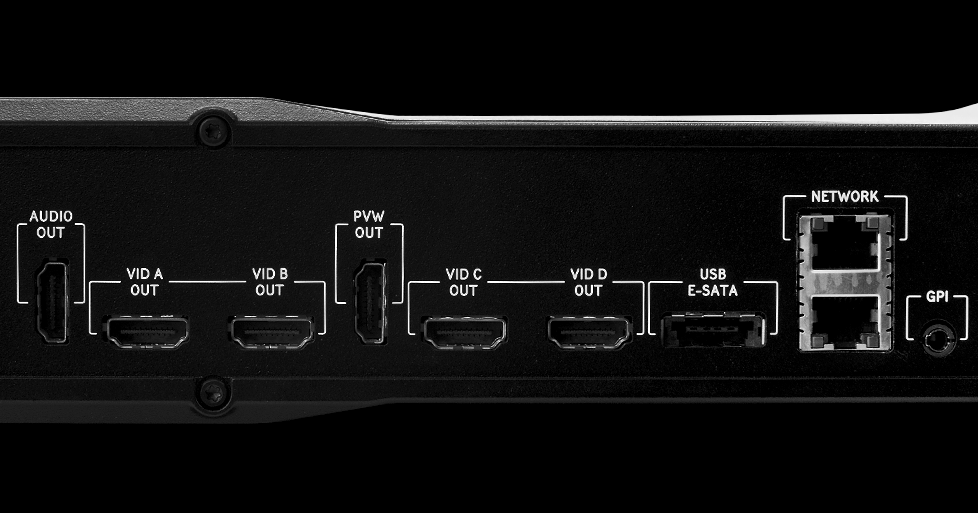

| OUTPUT CONNECTORS | 4 x HDMI 1.4 (Program), 2 x HDMI 1.3 (Preview and Audio) |
| STORAGE CAPACITY | 1TB Internal SATA Drive |

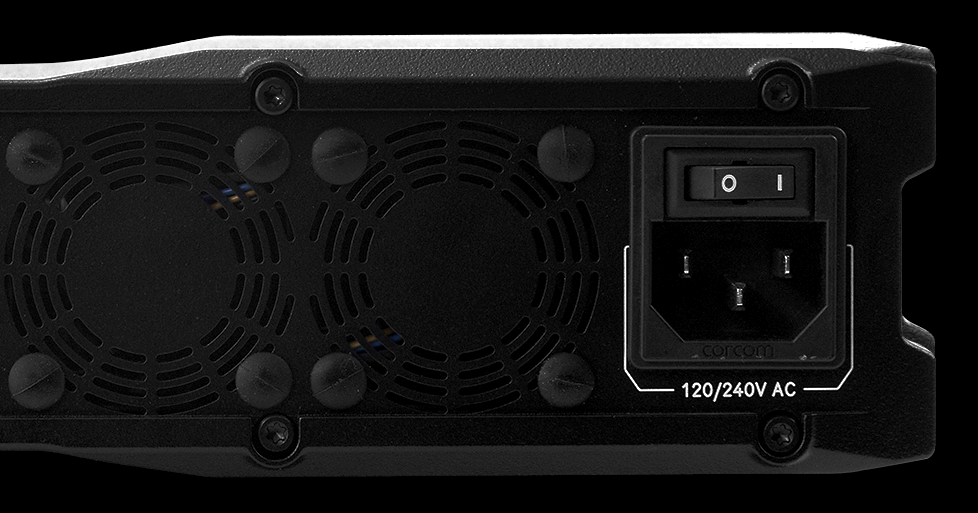

| POWER | 120 – 240V 50 – 60Hz A.C. |
