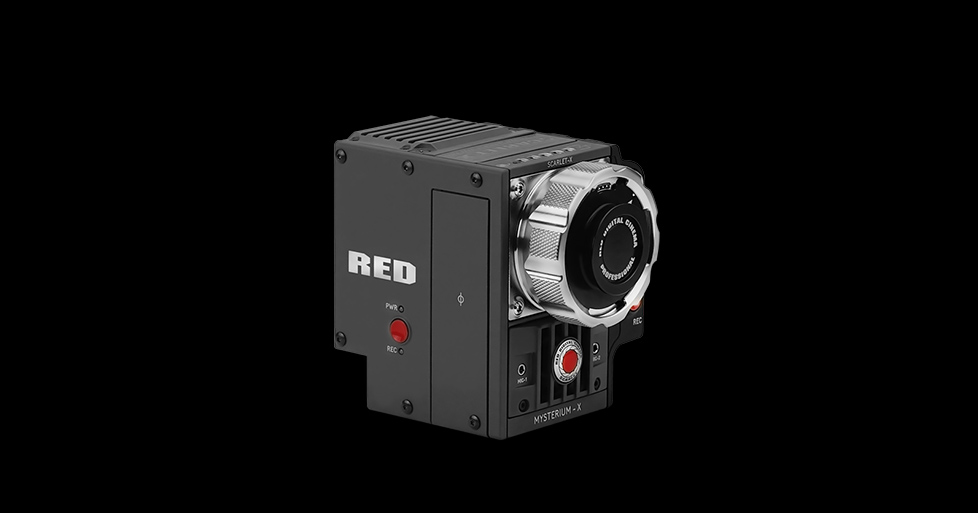

Scarlet-X

Scarlet. All grown up.

With the innate ability to capture 5K REDCODE RAW stills and 4K motion, resolution sustains itself as a dominant gene in the RED family. Scarlet-X functions as a flexible device, utilizing HDRx and interchangeable lens mounts to provide you with options in a world that’s always changing. 5K burst modes snap up to 12 fps with 4K reaching up to 30 fps—helping you capture every perfect moment. All of the finest qualities of cinema and photography have now aligned, letting you take advantage of the best of both worlds with Scarlet-X.

Revolution in action.

Scarlet brings your images to life with 4K footage that will change the way you look at motion. No matter if you’re shooting a feature film or web content to go side-by-side with your stills, you will be working with crisp REDCODE RAW files that will give you ultimate freedom and control when finishing. Scarlet harnesses the power to bring life to imagery and imagery to life.

Covers. Covered.

Photography icons from Bruce Weber to Greg Williams have used RED cameras to shoot for the most influential fashion magazines in the world. Vogue, Harpers Bazaar, and W magazine have all counted on RED DSMC for covers, photo spreads and video content—getting the most out of every shoot.

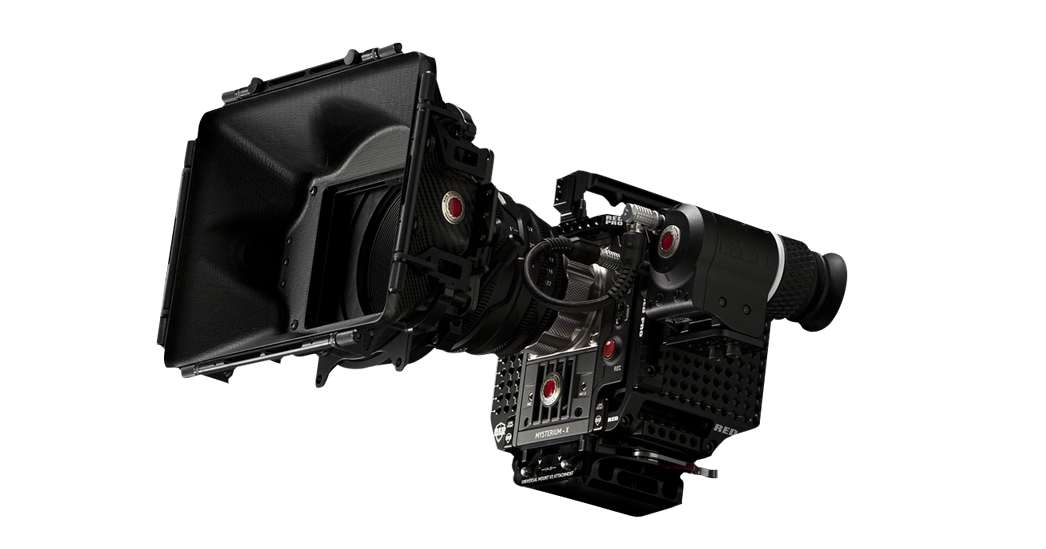

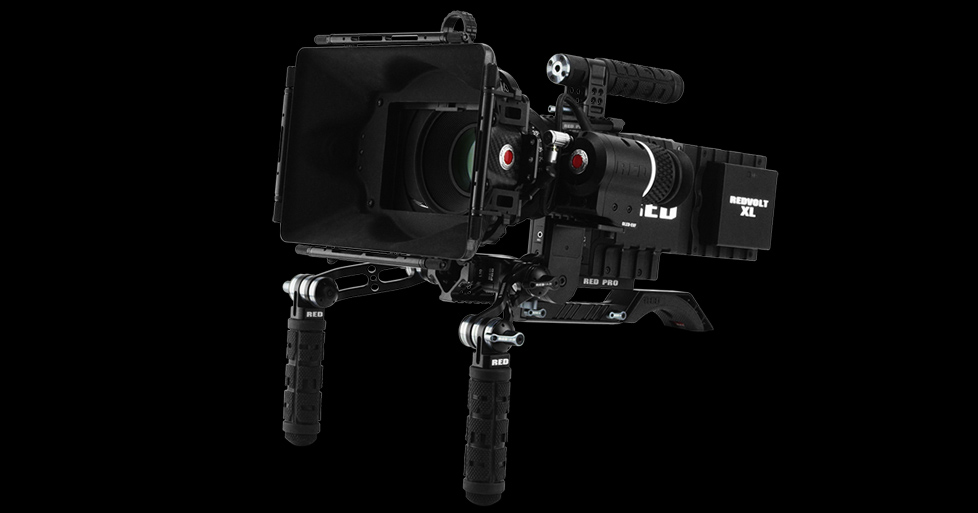

Customize.

RED accessories and modules allow you to configure your camera to adapt and fit every shoot. Whether you’re gearing up for a photo shoot or are priming to film a feature, there are no limits when it comes to customizing your camera. Take advantage of modular architecture and have the perfect tool for every job.

Raw Potential.

REDCINE-X PRO software provides you with a wealth of integrated tools to import, finish, and export your images all within minutes. Offload your media using one of our REDSTATIONS and process your images with familiar grading modules and filters. Whether you’re working with a still or motion workflow, REDCINE-X PRO hosts an array of advanced features such as HDRx control and an integrated timeline to help you finish successfully. Take advantage of RAW potential with REDCINE-X PRO—available free only on RED.com.

Compromise nothing.
Shoot everything.

Scarlet-X leaves one-dimensional DSLRs in its wake, letting you simultaneously capture 4K video and stills on the spot. Record 4K REDCODE RAW at up to 30 fps and capture every moment. Simply bring your footage into REDCINE, pull your favorite stills, and export your content to the editing software of your choice. Maximize the value of your investment with the ability to deliver high-resolution video and still content all with one camera.

Raise your glass.

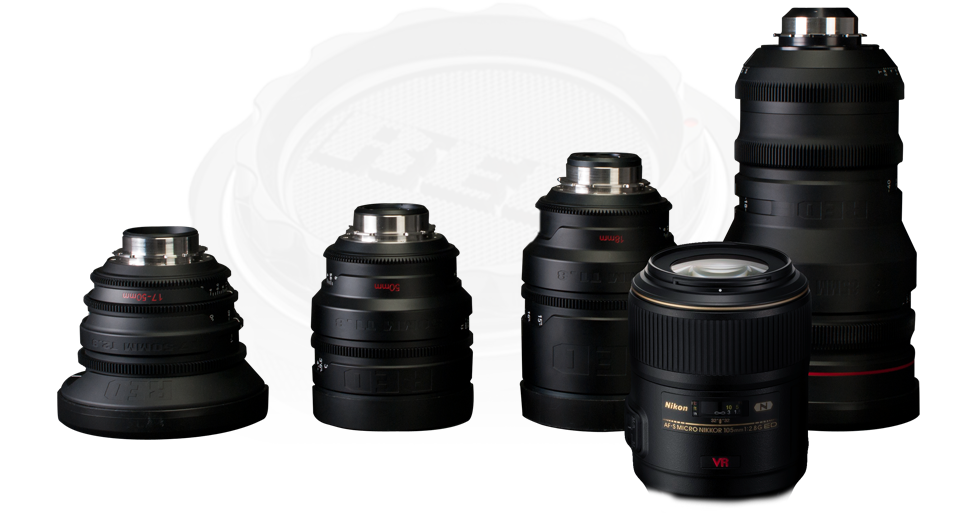

RED’s Scarlet-X comes standard with Canon EF and PL mount options, providing you with convenient access to a familiar arsenal of lenses. Scarlet-X makes it easy to stay sharp with interchangeable lens mounts, so Leica, Panavision, and even Nikon lenses will all be available for you to lock and load. One Camera. Every Lens.

Dynamic range.
To the power of x.

HDRx technology yields up to 18 stops of dynamic range, dilating your exposure in even the most challenging lighting conditions. Scarlet-X offers up to 4 more stops of latitude than its 35mm and DSLR counterparts, helping cinematographers and photographers alike make the impossible possible. By capturing two simultaneous streams using unique shutters, HDRx provides you with a track for motion and a razor sharp track for stills or VFX tracking. With HDRx, dynamic range is finally dynamic.

Load your mag.

REDMAG SSD media provides a solid, dependable media solution with storage capacities from 64GB, 128GB, and 256GB. Capable of reaching speeds up to 180 mb/s, REDMAG media is 4x faster than traditional CF cards—making it easier to offload the 160,000+ RAW frames you can capture with one SSD.

SENSOR	14 MEGAPIXEL MYSTERIUM-X™
PIXEL ARRAY	5120 (h) x 2700 (v)
DYNAMIC RANGE	13.5 stops, up to 18 stops with HDRx™ 6 fps with 5K FF and HDRx On 12 fps with 4K HD and HDRx™ On
MAX IMAGE AREA	5120 (h) x 2700 (v)
LENS COVERAGE	27.7mm (h) x 14.6mm (v) = 31.4 mm (d)
LENS MOUNT	Al Canon EF (PL mount optional)
MAX DEPTH OF FIELD	Equivalent to S35mm (Motion) / APS-H (Still) lenses
ACQUISITION FORMATS	5K FF REDCODE RAW (Full Frame) 4K HD REDCODE RAW 3K HD REDCODE RAW 1080p REDCODE RAW 1K REDCODE RAW
PROJECT FRAME RATES	23.98, 24, 25, 29.97, 47.96, 48, 50, 59.97
MONITOR/PROGRAM OUTPUT	HD-SDI and HDMI with Frame Guides and Look Around or Clean Feed 1080p 4:2:2, 720p 4:2:2 SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio
DIGITAL MEDIA	REDMAG (SSD) Module : (64, 128, 256GB Media)
REDCODE™	16-bit RAW Processing : Compression choices of 18:1 to 3:1 1-12 fps 5K FF 1-30 fps 4K HD 1-48 fps 3K HD 1-60 fps 1080p HD 1-120 fps 1K
AUDIO	2 channel, uncompressed, 24 bit, 48KHz. Optional 4 channel, and AES / EBU digital audio.

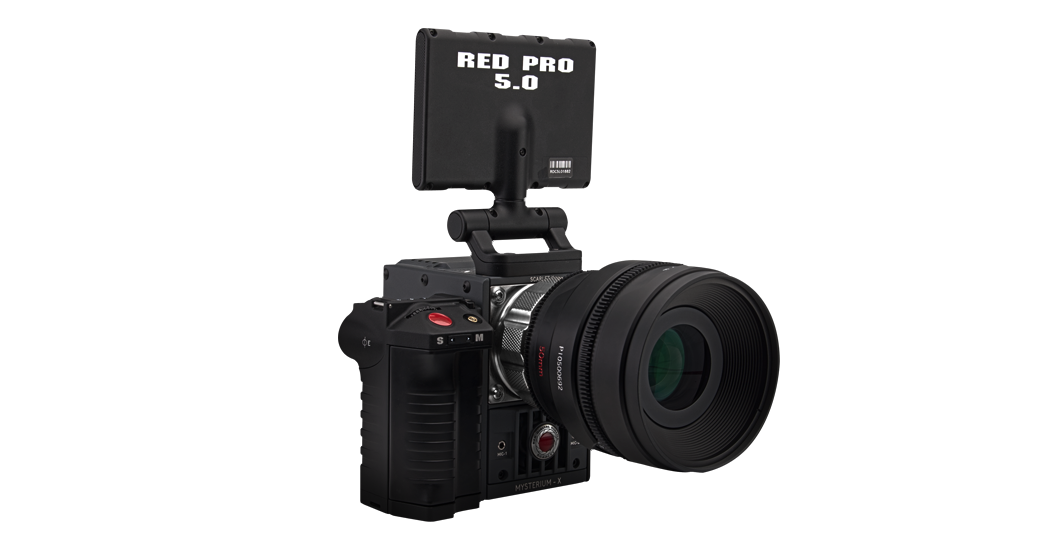

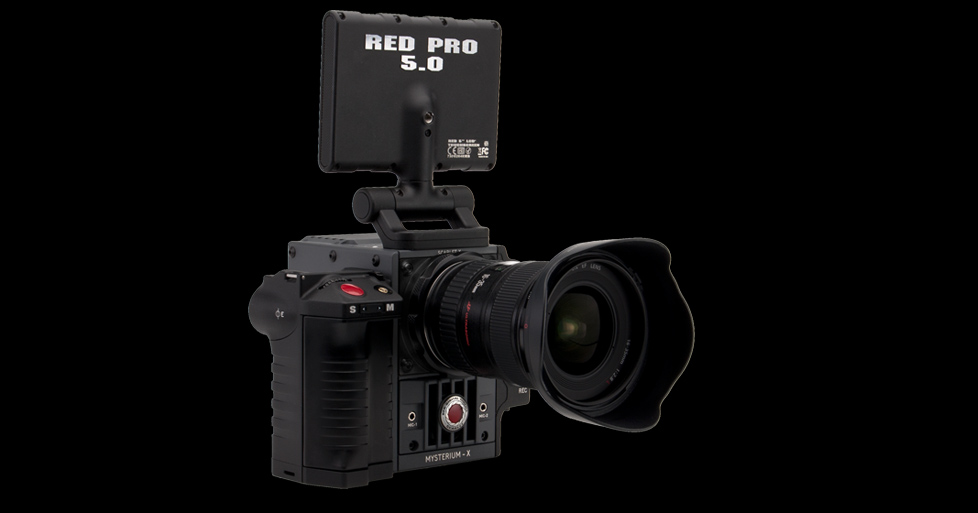

MONITORING OPTIONS	RED LCD 5" Touchscreen Display BOMB EVF™ High Definition Viewfinder
REMOTE CONTROL	REDLINK Wireless, Ethernet, RS232, GPI Trigger
WEIGHT	5lbs. Body only
CONSTRUCTION	Aluminum Alloy
COLOR	Battleship Gray Brain Body, Black Canon Mount and Side SSD, All DSMC Modules Black
TEMPERATURE RANGES	Operating Range: 0˚C to +40˚C (32˚F to 104˚F) Storage Range: -20˚C to +50˚C (-4˚F to 122˚F)
