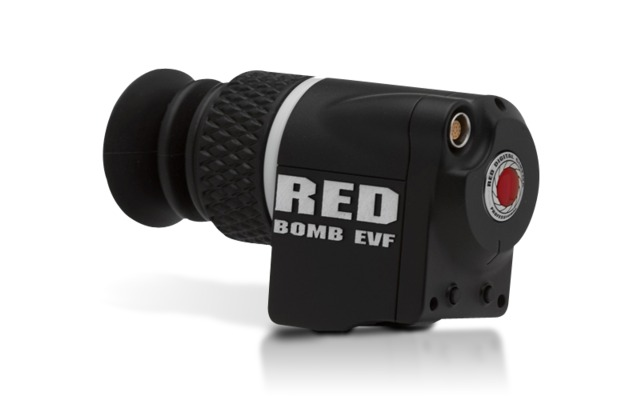

BOMB EVF [LCOS]

The BOMB EVF® (LCOS) is a high-definition, lightweight viewfinder that aligns quality performance with compact form factor—making it a great addition to your DSMC® camera system. Notable features include a tally light indicator for a recording reference, an integrated eyepiece heater, and two user customizable buttons.

The BOMB EVF (LCOS) is optimized for the EPIC and SCARLET® camera systems. Using this EVF with a DSMC2™ camera requires a DSMC2 LEMO Adaptor A.

The newly released DSMC2 RED EVF (OLED) uses the latest OLED technology, provides an unmatched personal viewing experience with a high contrast 1080p OLED micro-display, and improved color accuracy with 30-bit RGB color representation for use with DSMC2 cameras.

Dimensions: 5.2"/132mm (long) x 2.25"/57mm (diameter) x 3.2"/79mm (high)

Weight: 1.2lb / 0.6kg

Operating Temps: -10C to +40C (-14F to 104F)

Storage Temps: -30C to +70C (-22F to 158F)

Notable Features: Integrated eyepiece heater, 2 User Defined Buttons, Tally Indicator

Resolution: 1280 (wide) x 784 (high) full-color

Bit Depth (Color): 30-bit RGB

Colorimetry: Rec 709 (nominal)

Contrast Ratio: 1000:1 typical

Display Modes: Free Run, Synchronous, Open Gate (Camera dependent)

Display Rate: Up to 60 FPS (Display mode and Camera Dependent)

Eyepiece Optics: Fully coated with – 4.0 to + 2.0 diopter correction range

Power: 6W (nominal) 12W (max) via camera interface
