DSMC3 RED 5-Pin to Dual XLR Adapter

SKU 720-0061


Orders placed today are expected to ship in 1–2 business days
QUESTIONS? Call us +1 (949) 536-7506

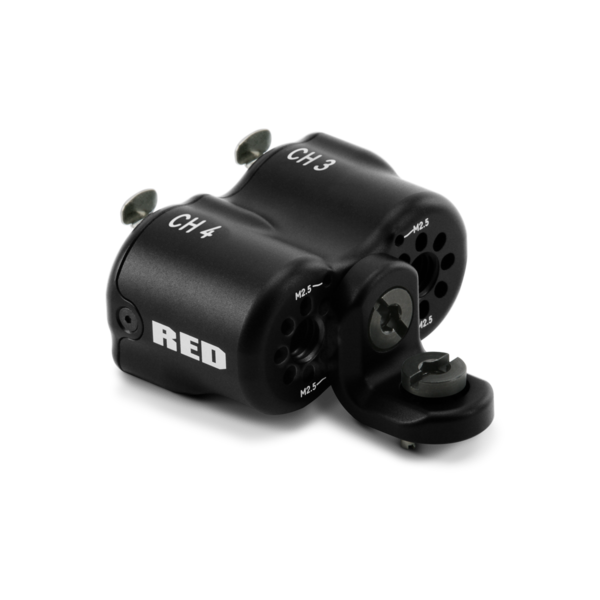

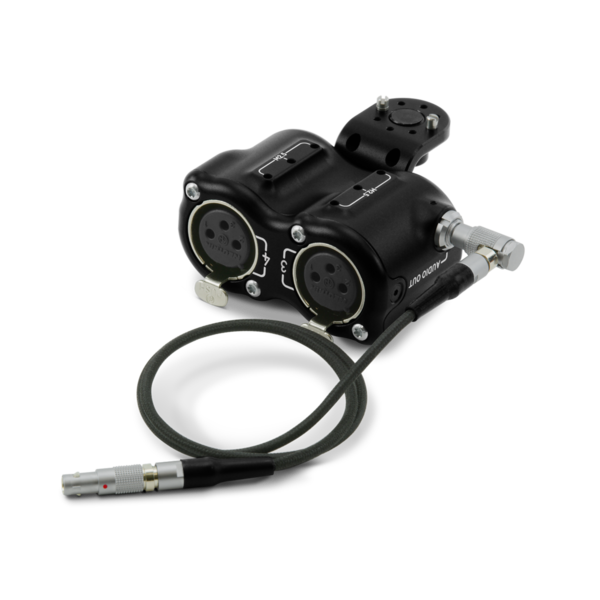

The DSMC3 RED® 5-Pin to Dual XLR Adapter is a compact solution to break out the 5-Pin ODU port to Dual 3-Pin XLR ports. The Adapter can provide 48V phantom power with mic and line input and is easily mounted to your V-RAPTOR via ⅜-16 screw.

For issues troubleshooting, contact support@cs.inc.

COMPATIBILITY: The DSMC3 RED 5-Pin to Dual XLR Adapter is compatible with KOMODO-X, V-RAPTOR, and V-RAPTOR XL camera systems.

DIMENSIONS ADAPTERHeight: 1.31 in (33.15 mm)​
Width: 2.54 in (64.50 mm)​
Depth: 1.70 in (43.16 mm)​
DIMENSIONS RIGHT ANGLE BRACKETHeight: 1.10 in (28.00 mm)​
Width: .87 in (22.00 mm)​
Depth: 1.10 in (28.00 mm)​
WEIGHT​ ADAPTER W/ BRACKETApproximately 0.50 lbs (224.81 g)​​​​
MATERIAL​​Aluminum and Rubber​​​​
CONNECTORS2x 3-Pin XLR (Female)
OPERATING TEMPERATURE0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE–20°C to 50°C (–4°F to 122°F)

Tech specs reflect both current and projected information. Everything is subject to change.

  • 1x 3-Pin XLR Port Adapter
  • 1x 5-Pin Right-to-Straight Cable ~12.0 in. (289.0 mm) (Length measured from end-to-end of cable including connectors)
