V-RAPTOR XL

AN EXPANSION OF THE MOST POWERFUL AND ADVANCED RED® CAMERA PLATFORM EVER. V-RAPTOR XL INCLUDES THE I/O, FEATURES, AND WORKFLOWS LARGE-SCALE PRODUCTIONS WANT IN AN ALL-IN-ONE BODY.

V-RAPTOR XL

V-RAPTOR XL IS THE PERFECT SOLUTION TO SUPPORT HIGH-END TELEVISION, MOTION PICTURE PRODUCTIONS, AND PROFESSIONAL PROJECTS REQUIRING AN ALL-IN-ONE SOLUTION.

  • Sensor Options

    MULTI-FORMAT 8K VV + 6K S35 OR 8K S35

  • Frame Rates

    Up to 120fps @ 8K

  • Dynamic Range

    16.5+ stops

  • ELECTRONIC ND SYSTEM

    2-7 STOPS WITH CONTROL DOWN TO 1/4 STOPS

  • INDUSTRY STANDARD

    INTEGRATED I/O ARRAY

  • POWERFUL & VERSATILE

    12V AND 24V POWER OUTPUTS

  • Advanced

    Intelligent Focus Options

  • Remote & Virtual Production Ready

    Wireless Timecode & Genlock

V-RAPTOR XL Sensor Options

V-RAPTOR XL IS AVAILABLE WITH TWO SENSOR OPTIONS. USERS CAN EITHER CHOOSE THE VERSATILITY AND LOWLIGHT PERFORMANCE OF THE MULTI-FORMAT8K VV + 6K S35 SENSOR OR THE DEDICATED 8K S35 VERSION AS AN OPTION FOR 8K CAPTURE OF THEIR S35 LENSES.

CHOOSE THE VERSATILITY AND LOWLIGHT PERFORMANCE OF THE MULTI-FORMAT8K VV + 6K S35 SENSOR OR THE DEDICATED 8K S35 VERSION FOR 8K CAPTURE OF THEIR S35 LENSES.

  • V-RAPTOR XL 8K VV
  • V-RAPTOR XL 8K S35

V-RAPTOR XL 8K

  • SENSOR TYPE:
  • MAX RESOLUTION:
  • CODEC:
  • DEFAULT DATA RATE:
  • SPECIALTY:
  • PIXEL PITCH:

OPTIMIZED LENS COVERAGE

WITH TWO SENSOR OPTIONS, CUSTOMERS CAN CHOOSE THE SENSOR FORMAT THAT IS MOST COMPATIBLE WITH THEIR LENS CHOICES AND THE ONE THAT BEST SUITS THEIR SHOOTING STYLE.

CUSTOMERS CAN CHOOSE THE SENSOR FORMAT THAT IS MOST COMPATIBLE WITH THEIR LENS CHOICES AND BEST SUITS THEIR SHOOTING STYLE.

Fujinon Premista 19-45mm

cinema zooms

Zeiss 28-80mm

CINEMA ZOOMS

Sigma 135mm

CINEMA ZOOMS

ATLAS ORION

ANAMORPHIC PRIMES

Entaniya HAL 220 LF

SPECIALTY LENS

Leica Thalia

LARGE FORMAT CINEMA PRIMES

FUJINON 25-1000 F2.8 Zoom

BROADCAST ZOOMS

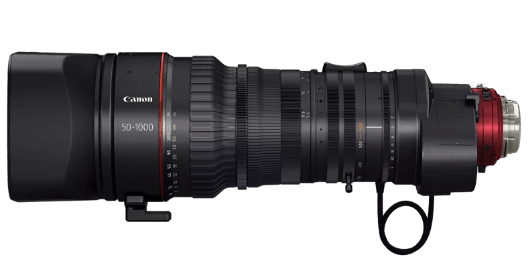

Canon CINE-SERVO 50-1000mm T5.0-8.9 PL

WILDLIFE ZOOMS

Optimo Style 25-250 4th Generation

of 10x Spherical Zoom Lens

CINEMA ZOOMS

Arri Zeiss Super Speeds

VINTAGE CINEMA PRIMES

SUMMILUX-C | Leitz Cine

MODERN CINEMA PRIMES

Fujinon Premista 19-45mm

cinema zooms

Zeiss 28-80mm

CINEMA ZOOMS

Sigma 135mm

CINEMA ZOOMS

ATLAS ORION

ANAMORPHIC PRIMES

Entaniya HAL 220 LF

SPECIALTY LENS

Leica Thalia

LARGE FORMAT CINEMA PRIMES

    FUJINON 25-1000 F2.8 Zoom

    BROADCAST ZOOMS

    Canon CINE-SERVO 50-1000mm T5.0-8.9 PL

    WILDLIFE ZOOMS

    Optimo Style 25-250 4th Generation

    of 10x Spherical Zoom Lens

    CINEMA ZOOMS

    Arri Zeiss Super Speeds

    VINTAGE CINEMA PRIMES

    SUMMILUX-C | Leitz Cine

    MODERN CINEMA PRIMES

      • V-RAPTOR 8K VV
      • V-RAPTOR 8K S35

      V-RAPTOR 8K VV multi-format sensor offers unmatched lens selection and creative flexibility for any production from high-end cinema to independent films. These lenses are just a few examples of what makes a perfect match with the V‑RAPTOR 8K VV.

      V-RAPTOR 8K VV multi-format sensor offers unmatched lens selection and creative flexibility. These lenses are just a few examples of what makes a perfect match with the V‑RAPTOR 8K VV.

      V-RAPTOR 8K S35 SENSOR OFFERS THE WIDEST LENS SELECTION AT THE HIGHEST RESOLUTION. CAPTURE SMOOTH AND FAITHFUL CHARACTER FROM CLASSIC CINEMA LENSES TO BROADCAST ZOOMS. THESE LENSES ARE JUST A FEW EXAMPLES OF WHAT MAKES A PERFECT MATCH WITH THE V‑RAPTOR 8K S35.

      V-RAPTOR 8K S35 SENSOR OFFERS THE WIDEST LENS SELECTION AT THE HIGHEST RESOLUTION. THESE LENSES ARE JUST A FEW EXAMPLES OF WHAT MAKES A PERFECT MATCH WITH THE V‑RAPTOR 8K S35.

      DIRECTOR / CINEMATOGRAPHER

      ZACK SNYDER

      “The V-RAPTOR XL has everything we need. We already knew the V-RAPTOR sensor produces great images, but now with added features that come with XL, we're even more excited. The internal ND system has an amazing benefit to our production methodology. We're shooting wide open all the time, so that is just vital. The XL is an amazing studio camera. With technology like this, there’s no excuses left, now it’s on you.” – Zack Snyder, Director / Cinematographer

      See video

      INTEGRATED

      ELECTRONIC
      ND SYSTEM

      WITH PRECISION CONTROL

      The V-RAPTOR XL features an all-new electronic ND system which provides unprecedented precision controls for no-compromise exposure management.

      Precise Exposure Control

      Cycle through 1/4, 1/3 or full stop increments to choose exact exposures without compromising the intended shutter speed or aperture. Includes various methods of control via dedicated buttons, LCD display, monitor, or remotely via APP / RCP2.

      ELECTRONIC ND SYSTEM

      The V-RAPTOR XL features an all-new electronic ND system which provides unprecedented precision controls for no-compromise exposure management.

      WATCH REDTECH

      INDUSTRY STANDARD

      INTEGRATED
      I/O ARRAY

      V-RAPTOR XL Features the most flexible and robust power and I/O ecosystem available in the market today. 4K and HD SDI monitoring, support for direct-attach monitor, discreet LUT management, intuitively placed power outputs, all designed to support large productions.

      REAR I/O ARRAY

      • Industry Standard Integrated I/O Array 12V auxiliary power outputs provide support for camera assistants and a centralized source to power all peripherals.
      • 5-Pin TC, BNC Genlock, GIG-E and USB-C for remote camera control, and 3x 12G SDI provide ultimate accessibility and on-set support for the DIT.

      FRONT-FACING I/O ARRAY

      • Dual 24V 3-PIN Fischer connectors power Assistants high torque lens controllers and supports remote camera run/stop.
      • 3AMP 24V shared capacity ensures motors receive the power they need to drive even the stiffest of lenses.

      Front-Facing I/O Array

      • More Versatility and Control for Operators and ACs
      • Front facing 3G-SDI and 2-PIN 12V Power supports any Operators monitoring preference.

      Purpose-built For

      Camera Teams

      “I really am excited about how much more space for accessories, additional power supply, and outputs the XL offers. Not just that but being able to speed things up and be more efficient with the internal ND's means no more switching filters in and out, we can just adjust wirelessly. It gives us everything we need to do our job efficiently.” – Braden Batsford, First AC

      See video

      MORE POWER

      OPTIONS &
      FLEXIBILITY

      Offering the widest power source compatibility of any comparable cinema camera.

      Dual-Voltage Battery Support

      With the versatility to utilize 24-34V high-voltage batteries with multiple auxiliary power outputs, transforming the V-RAPTOR XL into the power management hub for all accessories, or standard 12V-16V batteries when auxiliary power is not needed.

      Available in V-Lock or Gold Mount Variants

      Offered in both industry standard V-Lock and Gold Mount bodies, choose the power option to suit your needs.

      Compatible with Standard 14v and 26v V-Lock, Gold Mount, Gold Mount Plus and Core SWX Helix batteries for maximum flexibility.

      ADVANCED

      INTELLIGENT

      FOCUS OPTIONS

      V-RAPTOR XL features in-camera AI processing and on-sensor enhanced phase detect autofocus, offering the versatility and confidence for users to bring its unparalleled cinematic image performance into new worlds. Upcoming enhancements also include face detection and object tracking.

      VIRTUAL & REMOTE

      PRODUCTION

      V-RAPTOR XL provides multiple camera side solutions for filmmakers to confidently enter the quickly evolving worlds of virtual and remote production without compromising on image quality or camera system performance.

      SYSTEM BENEFITS

      • Fast-Rolling Shutter – 2x Faster than any previous RED sensor
      • Fine Degree of Control / Fine-tuning shutter angle
      • Sensor Sync Shift and PTP Sync
      • IP based remote control and viewing
      • Network control capabilities such as livefeed, camera control and settings control
      • Multi-camera control
      • Low-Latency SDI Feeds
      • Realtime camera and lens metadata

      Wireless Timecode & Genlock

      Without the restrictions of a wired connection, filmmakers and crew can benefit from the convenience and versatility of how and where they choose to sync.

      Multiple Sync Options

      Seamlessly bring the RED Cinematic look beyond cinema and into the world of sports, music, and more with V-RAPTOR XL supporting sync over PTP, cabled tri-level genlock, or wirelessly through the ACN network.

      ADVANCED

      COOLING

      SYSTEM

      The XL System features an all new three-stage cooling system. Dedicated fans cool both auxiliary power components and camera components separately, while a thermoelectric heat exchanger maintains precise sensor temperature. This advanced cooling system means quieter operation, less black shading, and a more robust system no matter the environment.

      The XL features a three-stage cooling system with dedicated fans for aux power and camera components, while a thermoelectric heat exchanger maintains precise sensor temperature. This means quieter operation, less black shading, and powerful performance in any environment.

      MEDIA

      CF EXPRESS

      V-RAPTOR XL uses standardized and high-performance media to ensure the best reliability and performance possible.

      RED CONTROL

      PRO

      Operate one or multiple V-RAPTOR XL's over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more.

      Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location.

      Operate one or multiple V-RAPTOR XL's over an IP connection to sync settings, manage files locally, upload directly to FrameIO, and more. Ideal for control of multi-camera shoots and arrays and live events, all from one central location.

      RED CONTROL

      OPERATE V-RAPTOR XL REMOTELY WITH WIRELESS CONNECTIVITY VIA THE FREE RED CONTROL APP, AVAILABLE NOW FOR IOS AND ANDROID DEVICES.

        PRODUCTION

        PACK

        • V-RAPTOR XL™ camera system
        • DSMC3 RED TOUCH 7.0” LCD MONITOR WITH DSMC3 RMI CABLE (18”) AND SUNHOOD
        • REDVOLT XL-V (or XL-G) Batteries
        • Red Compact Dual V-Lock or Gold Mount Charger
        • RED Pro CFExpress 2TB cards and card reader
        • V-RAPTOR XL™ Top Handle with extensions
        • V-RAPTOR XL™ Riser Plate
        • V-RAPTOR XL™ Top and Bottom 15mm LWS rod support brackets
        • DSMC3 RED 5-pin to Dual XLR adapter

        FORM FACTOR COMPARISON

        THE SIZE AND FEATURES OF THE V-RAPTOR AND V-RAPTOR XL SYSTEMS OFFER THE PERFECT TOOL FOR THE FILMMAKERS NO MATTER THE PROJECT OR JOB.

        V-RAPTOR

        • Compact body measuring only 6" x 4.25" x 4.25" and just over 4 lbs with integrated RF Mount
        • Rugged dust and water resistant design
        • Robust professional I/O array including 2x 12G SDI outputs and 5-pin audio connector w/phantom power capability
        • Integrated and easy-to-navigate control display
        • USB-C interface for remote control, ethernet offload, and more
        • Compatibility with RED Control app

        V-RAPTOR XL

        • All-in-one body measuring 8.5" x 6.5" x 6" and weighing 8lbs with PL Mount
        • Electronic ND system for precise exposure control
        • Interchangeable lens mount
        • Compatibility with both 26V V-Mount or Gold Mount batteries with an array of high performance 12V and 24V outputs
        • Includes a built in Ambient Lockit module capable of wirelessly syncing Timecode and Genlock

        Technical Specifications

        Sensor Specs

        V-RAPTOR XL 8K VV

        V-RAPTOR XL 8K S35

        Sensor Type

        V-RAPTOR™ 8K VV 35.4 Megapixel CMOS

        V-RAPTOR™ 8K S35 35.4 Megapixel CMOS

        Effective Pixels

        8192 × 4320

        8192 × 4320

        Sensor Size

        40.96 mm x 21.60 mm (Diagonal: 46.31 mm)

        26.21 mm x 13.82 mm (Diagonal: 29.63 mm)

        Dynamic Range

        17+ stops

        16.5+ stops

        Key Features
        Built-in ND

        Motorized clear filter and precision controlled electronic ND filter

        Electronic ND minimum density 2 stops, maximum density 7 stops

        Electronic ND selectable increments of 1/3 stops, 1/4 stops, and 1 stop

        Mount Type

        Interchangeable Lens Mount

        Included V-RAPTOR XL PL Mount with /i Support

        Supports V-RAPTOR XL Locking Canon EF Mount

        Accepts DSMC Lens Mounts, but does not provide electronic communication or control.

        Battery Type

        Integrated Dual Voltage 14/26V V-Lock or Gold Mount Battery Interface

        Recording
        Max Data Rates

        Up to 800 MB/s using RED branded or other qualified CFexpress media cards1

        REDCODE® RAW
        MAX FRAME RATES

        120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)

        140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)

        160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)

        192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)

        240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)

        320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)

        480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)

        PLAYBACK FRAME RATES
        (PROJECT TIME BASE)

        23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions

        BEST AVAILABLE
        REDCODE® SETTINGS

        REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps

        REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps

        REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps

        REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps

        REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps

        REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps

        REDCODE® RAW
        ACQUISITION FORMATS

        8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x

        7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x

        6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x

        5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1

        4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1

        3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1

        2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1

        Apple ProRes

        Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT.

        4K (4096 x 2160) and 2K (2048 x 1080) up to 120 fps

        Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) 60 fps.

        General
        Construction

        Aluminum Alloy

        Weight

        7.99lbs (with PL Mount, V-Lock) 8.08lbs (with PL Mount, Gold Mount)

        DC POWER INPUT

        19.5-34 V via 4-Pin DC-IN

        Operating Temperature

        0°C to 40°C (32°F to 104°F)

        Storage Temperature

        -20°C to 50°C (-4°F to 122°F)

        Relative Humidity

        0% to 85% non-condensing

        ADDITIONAL FEATURES
        Color Management

        Image Processing Pipeline 2 (IPP2)

        Supports multiple simultaneous 33x33x33 3D LUT viewing

        Supports multiple simultaneous CDL viewing and adjustment

        Audio

        Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz

        Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz

        Autofocus

        Phase Detect and Contrast

        Remote Control

        Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector

        Wired control via USB-C (compatible USB-C to Ethernet adapter1 required) or Gigabit Ethernet allowing remote camera control, live MJPEG preview video feed and remote media offload

        9-Pin 0B GIG-E (1000BASE-T)

        4-Pin 00B CTRL (RS-232)

        Compatible with RED Control and RED Control Pro

        Power Outputs

        Regulated 12 V Outputs2

        2x P-TAP Connectors (3AMP Combined)

        1x Rear 2-Pin 0B (3 AMP)

        1x Rear 2-Pin 0B (1.5 AMP)

        1x Front 2-Pin 0B (1 AMP)

        Regulated 24 V Connectors

        2x Front 3-Pin Fischer (3 AMP Combined)

        Monitor Outputs

        Proprietary top accessory port for monitoring and control

        3x 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes (SDI 1/2/3)

        1x 3G-SDI with 3G-SDI and 1.5G-SDI modes (EVF)

        12G-SDI: Up to 4096 x 2160 4:2:2 for 60p

        6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p

        3G-SDI: Up to 2048 x 1080 4:2:2 for 60p

        1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p

        SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

        Monitor Options

        DSMC3 RED® Touch 7.0" LCD

        IP streamed 1080p live preview wirelessly or wired via USB-C or Ethernet1

        Integrated 2.4" LCD for camera control (no preview video)

        CAMERA SYNC OPTIONS

        Tri-Level Genlock through BNC

        Linear Timecode (LTC) through 5-Pin 0B

        PTP through 9-Pin 0B GIG-E

        Wireless Genlock and Timecode through Integrated Ambient Communication Network (ACN)

        Software
        RED Control &
        RED Control Pro

        Access full camera controls and live preview from iOS or Android devices.

        Pro App:Operate one or multiple V-RAPTOR’s over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location.

        Standard app available from the Apple App Store and Google Play Store.

        RED Control Pro available via Apple App store only and requires additional purchase.

        RED Control works wirelessly or wired via USB-C

        Tech specs reflect both current and projected information. Everything is subject to change.

        1. For more information on compatible accessories, go to RED.com/third-party-accessories

        2. High voltage power source required.
