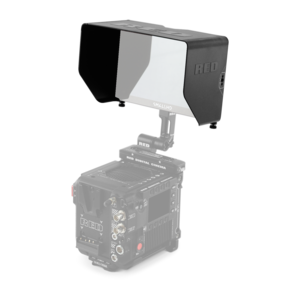

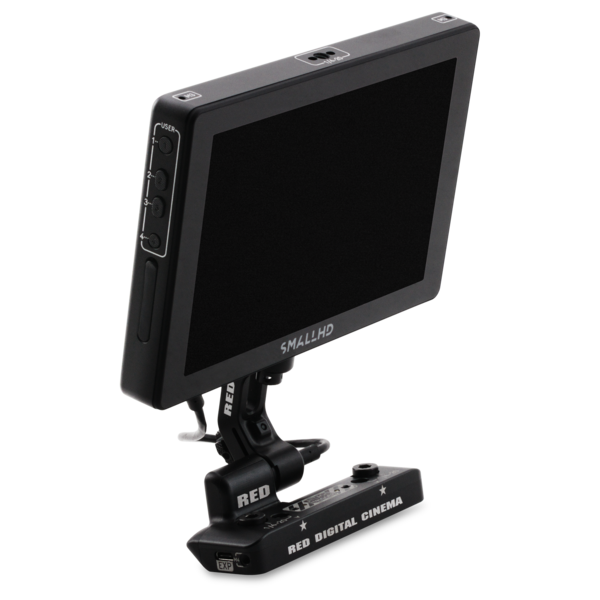

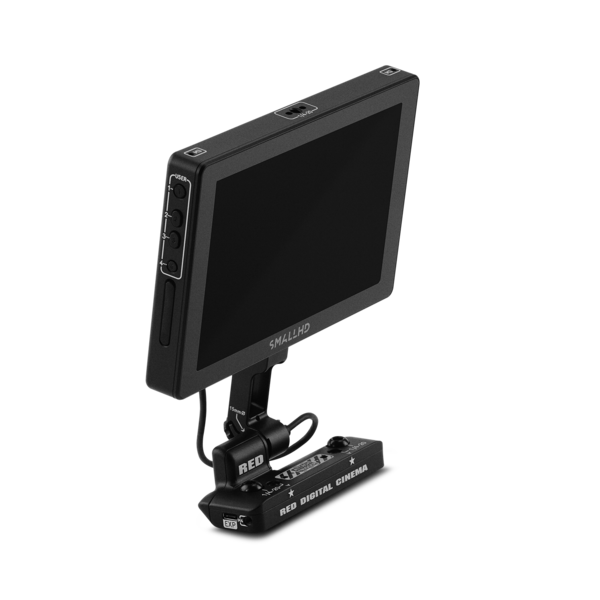

The DSMC3™ RED® Touch 7.0" LCD offers an HD viewing experience for recording and viewing footage on the V-RAPTOR® camera system. A 1920 x 1200 resolution display panel with peak brightness of 1300 nits and high pixel density (at 322 ppi), not only provides the optimal experience when viewing footage, but also features 100% DCI-P3 Color Gamut coverage for tremendous color accuracy. The monitor also features full control over the camera via the new responsive menu system powered by SmallHD PageOS, bringing features like Waveform, Vectorscope, Histogram, False Color, Color Picker, Pixel Zoom and more.

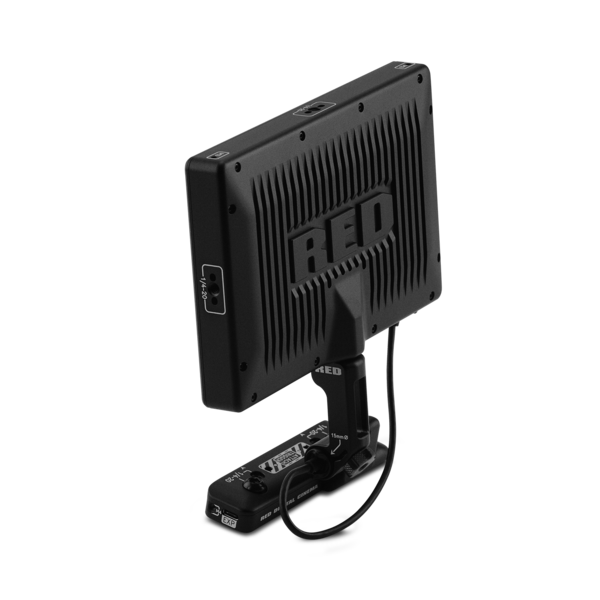

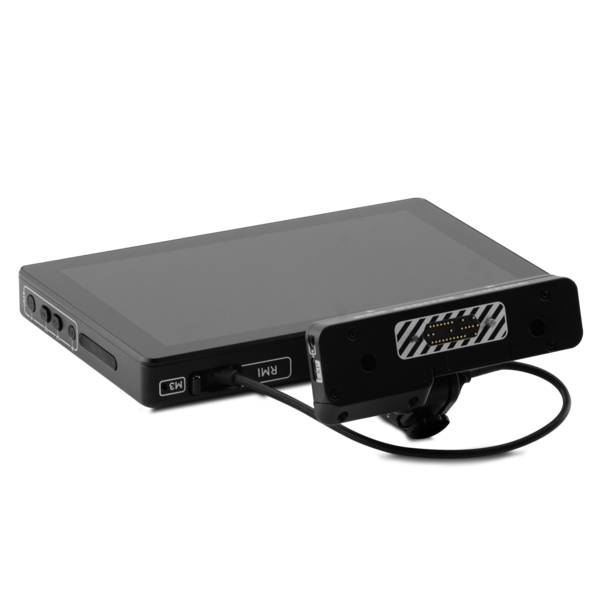

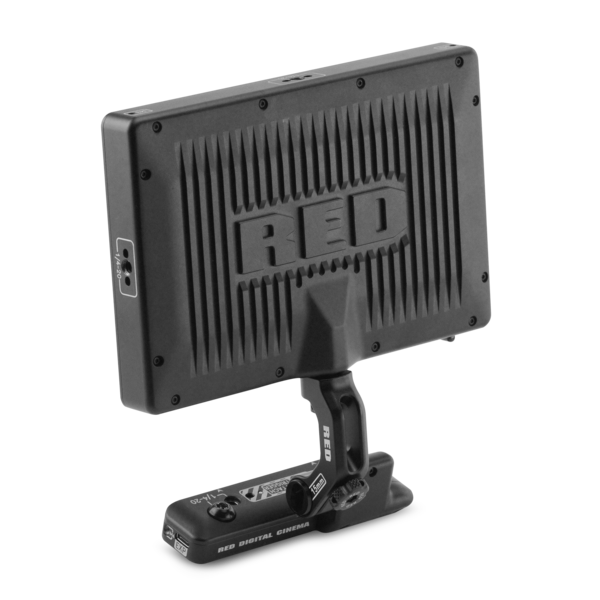

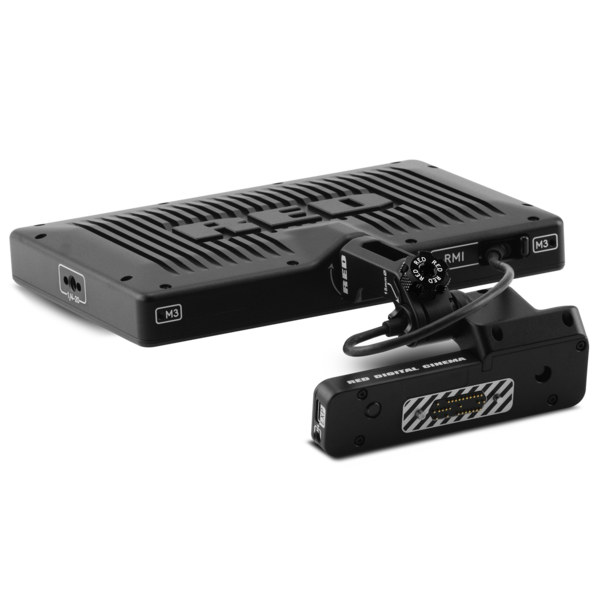

The lightweight display features a removable integrated tilt arm with the capability to rotate 180 degrees for versatile mounting options. It also boasts the latest generation pogo pins to provide power and video to the monitor in addition to the ability to connect via a single-locking USB-C style DSMC3 RMI Cable for video and power. No additional SDI or power cables are needed.
For issues or troubleshooting, please contact RED Support.
CAMERA COMPATIBILITY
DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
---|---|---|---|---|---|---|
- | - | - | - | ✓ | ✓ | ✓ |

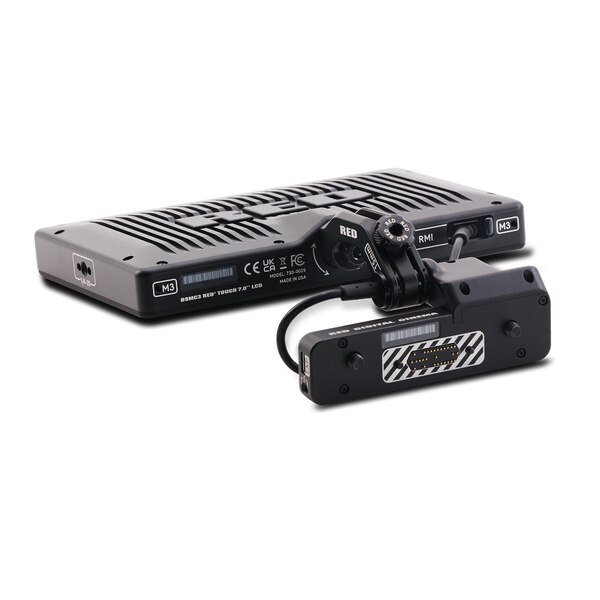

DSMC3 RED TOUCH 7.0" LCD
MONITOR DIMENSIONS | Height: 4.67 in. (118.70 mm) Width: 7.09 in. (180.10 mm) Depth: 1.13 in. (28.80 mm) |
---|---|
ARM DIMENSIONS | Height: 1.18 in. (30.00 mm) Width: 2.40 in. (61.00 mm) Depth: .70 in. (17.50 mm) |
RED MONITOR INTERFACE DIMENSIONS | Height: 1.67 in. (42.50 mm) Width: 4.25 in. (108.00 mm) Depth: 1.51 in. (38.23 mm) |
WEIGHT | Monitor approximately 1.25 lbs (568.0 g) Arm approximately .07 lbs (30.1 g) RED Monitor Interface approximately .28 lbs (126 g) |
MATERIAL | Aluminum Alloy |
RESOLUTION | 1920 x 1200 |
PIXEL DENSITY | 322 pixels per inch (ppi) |
REFRESH RATE | 60 Hz |
RESPONSE TIME | 25 ms |
CONTRAST | 1250:1 |
BRIGHTNESS | 1300 cd/m2 |
COLOR DEPTH | 10-bit processing (8-bit panel) |
COLORS | 100% DCI-P3[1] |
VIEWING ANGLE | ± 160° all axes |
DISPLAY ORIENTATION | Landscape, 180° rotation |
TOUCH | Projected Capacitive (pCap), multi-touch |
CAMERA CONNECTION | Power and Communication via RMI cable |
MOUNTING | 15mm Rail |
HOOD MOUNTING | 4x M3 Mounting Points |
BUTTONS | 4 Buttons Function 1,2,3 & 4 |
POWER CONSUMPTION | Max 18.3W |
OPERATING TEMPERATURE | 0°C to 38°C (32°F to 104°F) |
STORAGE TEMPERATURE | –18°C to 49°C (–0°F to 120°F) |
OPERATING HUMIDITY | 0% to 85%, non-condensing |
STORAGE HUMIDITY | 0% to 85%, non-condensing |
FIRMWARE REQUIREMENT | Compatible with camera firmware V1.1 or later |
1. Requires DCI-P3 calibration LUT. Contact SmallHD support to request.
Tech specs reflect both current and projected information. Everything is subject to change.
- 1x RED Monitor Interface
- 1x Arm

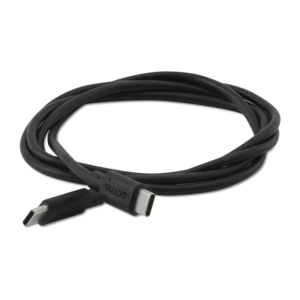

- 1x DSMC3 RMI Cable
