Product Info

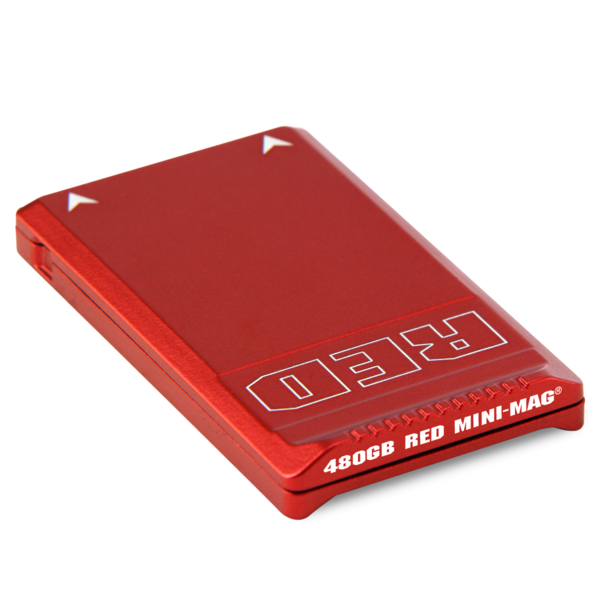

The RED MINI-MAG® is the smallest, fastest, and most powerful media option available. Compared to their predecessor, the REDMAG® 1.8", RED MINI-MAGs have faster read/write speeds to support higher frame rates and resolutions with minimal compression.
RED MINI-MAG data transfer speeds are up to 50% faster on DSMC2®, compared to their speeds on EPIC DRAGON. Capable of supporting simultaneous R3D® and Apple ProRes or Avid DNx recording on DSMC2 camera systems—RED MINI-MAGs offer the ideal media solution—whatever your workflow might be.
Manufactured from robust aluminum, RED MINI-MAGs offer rugged reliability in a compact form factor. Available in two capacities that can achieve up to 300 MB/s for even lower REDCODE® compression.
NOTE: Media max data rates vary based on camera BRAIN®.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | ✓ | ✓ | - | - | - | - |
RED MINI-MAG
| DIMENSIONS | Height: 1.78 in. (45 mm) Width: 0.32 in. (8 mm) Depth: 2.89 in. (73 mm) |
|---|---|
| WEIGHT | 0.11 lbs (0.05 kg) |
| MAX DATA RATES (480GB & 960GB) | WEAPON (Carbon Fiber) up to 300 MB/s RED EPIC-W up to 275 MB/s WEAPON (Magnesium) up to 225 MB/s EPIC DRAGON up to 200 MB/s SCARLET-W up to 170 MB/s RED RAVEN up to 140 MB/s SCARLET DRAGON up to 72 MB/s |
| OPERATING TEMPERATURE | 10°C to 40°C (50°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
| OPERATING HUMIDITY | 20% to 80%, non-condensing |
| STORAGE HUMIDITY | 10% to 90%, non-condensing |
| USABLE CAPACITY (FAT32) | RED MINI-MAG 480GB: 480.05GB / 447.08GiB RED MINI-MAG 960GB: 960.08GB / 894.14GiB |
Tech specs reflect both current and projected information. Everything is subject to change.
