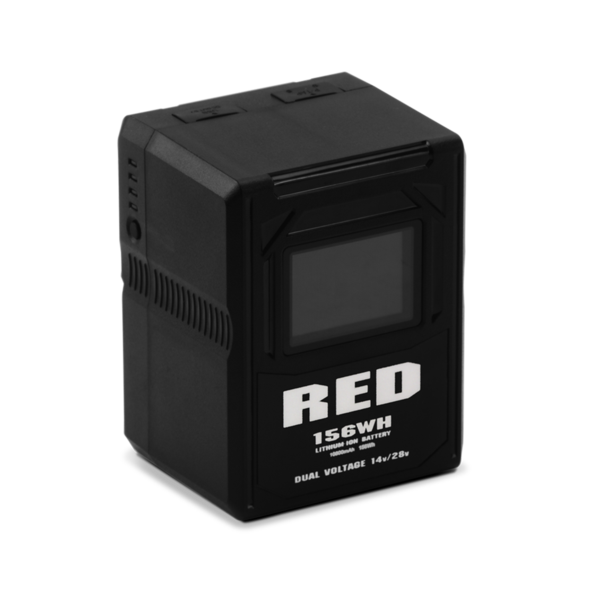

The REDVOLT® XL-V is a Native Dual Voltage™ battery that can support both high voltage cameras such as the V-RAPTOR® XL, and 14 V cameras such as the V-RAPTOR® (with an additional V-Lock battery adapter). This battery provides 156 Wh capacity, camera-aware automatic output switching between 14 V or 28 V, and it is capable of delivering up to 400 watts of power.

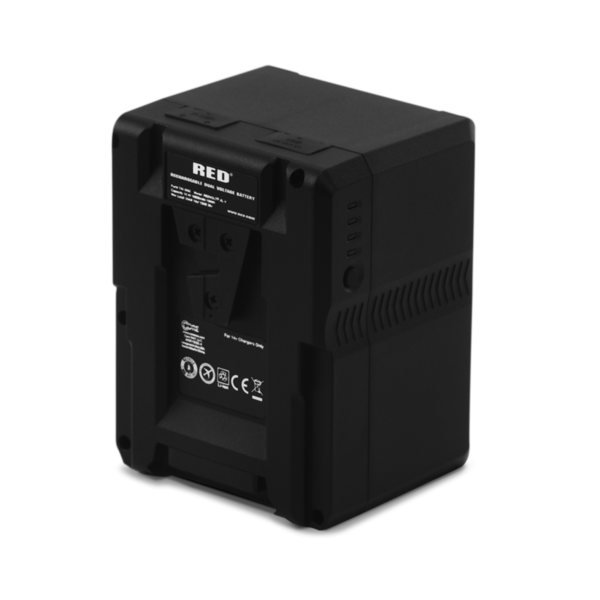

Utilizing a Core SWX Helix V-Lock style mount, this battery can detect when it is mounted to a V-RAPTOR XL, and it immediately switches output to 28 volts at 12 amps by dynamically switching the pack's circuit from a parallel to series cellular arrangement with no power regulation or up-conversion. When placed on a V-RAPTOR, or any other 14 V camera, the battery provides 14 volts at 24 amps output through the parallel cellular design.
- The REDVOLT XL-V must be charged with a 14 V charger.
- REDVOLT XL-V was designed in partnership with Core SWX and is compatible with most cameras/modules that accept V-Lock Mount batteries. For issues or troubleshooting, please visit https://coreswx.supportsystem.com.
*With an additional battery adapter or battery plate.
|DIMENSIONS|| Height: 4.65 in. (118.00 mm)|
Width: 3.54 in. (90.00 mm)
Depth: 2.99 in. (76.00 mm mm)
|WEIGHT||Approximately 2.35 lbs (1067.00 g)|
|BATTERY TYPE||Rechargeable Dual Voltage Lithium-Ion Battery|
|BATTERY OUTPUT||14.4 V / 28.8 V|
|BATTERY CAPACITY||10,800 mAH / 156Wh|
|MAX LOAD||12A @ 28v, 24A @ 14v|
|OPERATING TEMPERATURE||10℃~45℃ (50°F~113°F)|
|CHARGING TEMPERATURE||0℃~40℃ (32°F~104°F)|
|STORAGE TEMPERATURE||20℃~50℃ (68°F~122°F)|

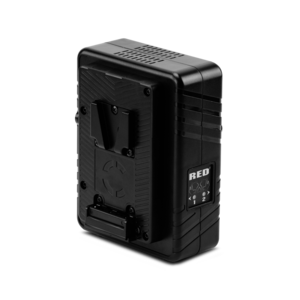

|CHARGER COMPATIBILITY||RED Compact Dual V-Lock Charger|
Tech specs reflect both current and projected information. Everything is subject to change.
