Product Info
The V-RAPTOR® Quick Release Platform Pack provides a compact lightweight shooting configuration for V-RAPTOR® users. The system features an Arca Swiss Style camera plate, secure safety lock system and gets the camera to the correct optical height for 15mm LWS accessories, such as matte boxes, lens support and wireless follow focus systems.
Additionally, the Arca Plate is used to securely attach other V-RAPTOR accessories such as the Expander Blade, V-Lock/ Gold Mount Battery Adapters, Side Ribs, Anti-Tip Plate and Production Plates.
NOTES:
- The V-RAPTOR camera plate is RRS Dovetail Standard (38mm).
- For issues, troubleshooting, or replacement components, contact support@cs.inc.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO* | KOMODO-X* | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | ✓ | ✓ | ✓ | - |
*When used with the KOMODO® Riser Plate.
| DIMENSIONS | Height: 2.02 in (51.40 mm) Width: 4.76 in (121.00 mm) Depth: 4.61 in (117.00 mm) |
|---|---|
| WEIGHT | Approximately 3.53 lbs (1.6 kg) |
| MATERIALS | Aluminum, Stainless Steel |
Tech specs reflect both current and projected information. Everything is subject to change.

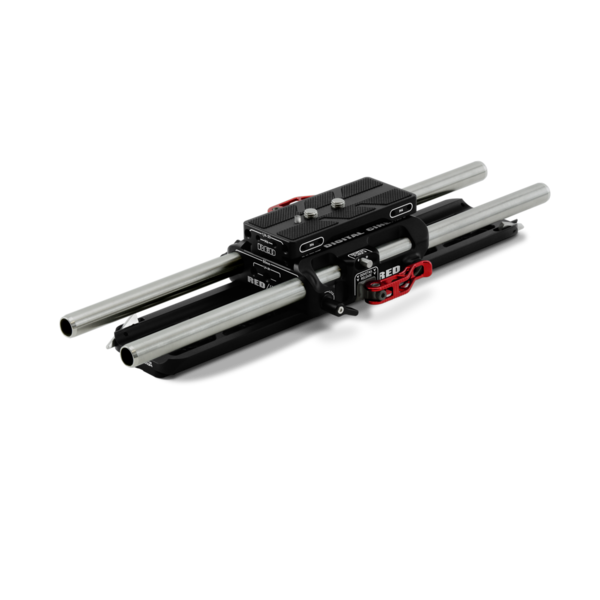

- 1x Quick Release Platform (15mm LWS)

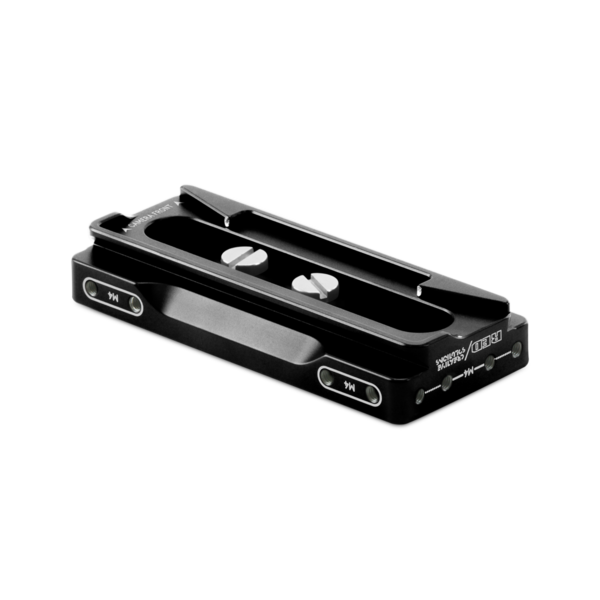

- 1x Dovetail Mounting Plate (short)

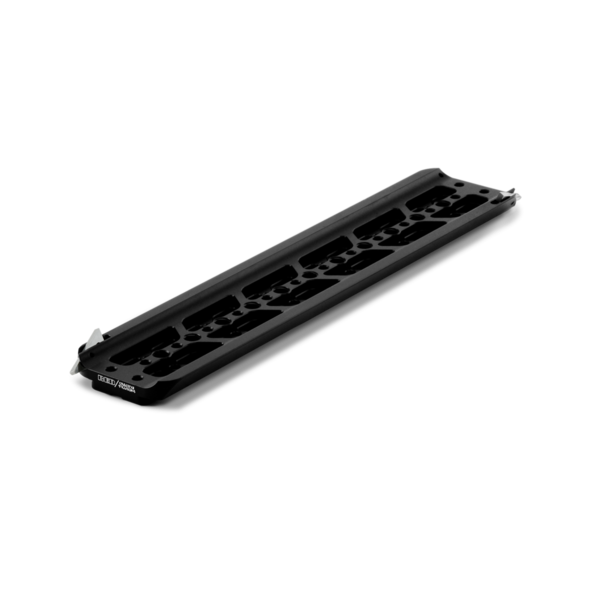

- 1x Dovetail Mounting Plate (long)

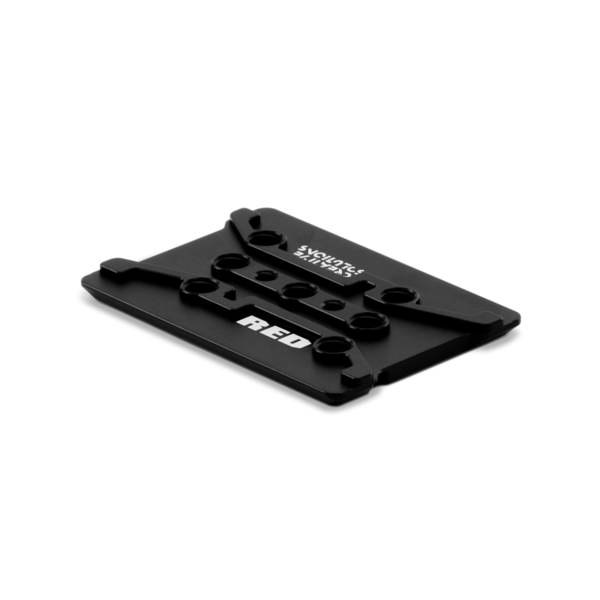

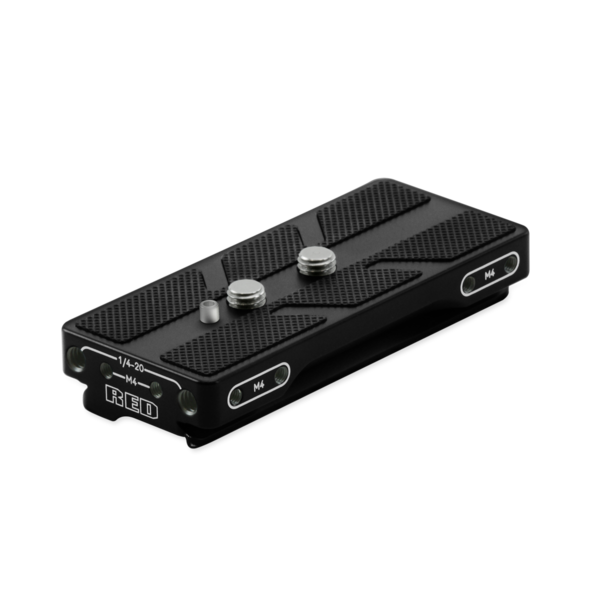

- 1x Arca Plate

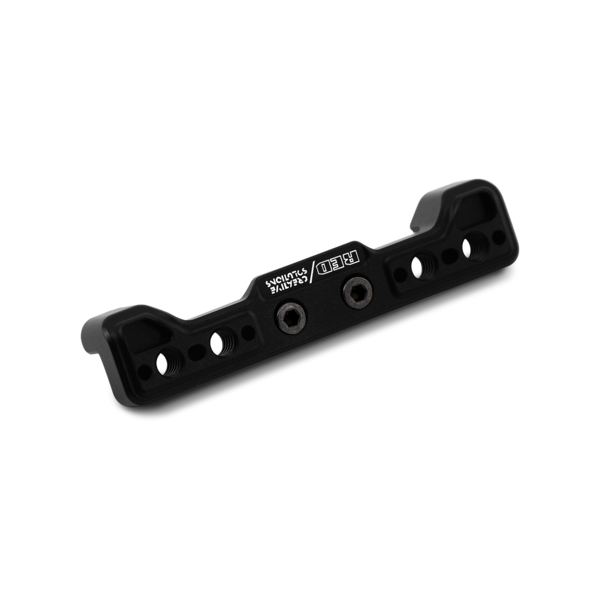

- 1x Anti-Tip Plate

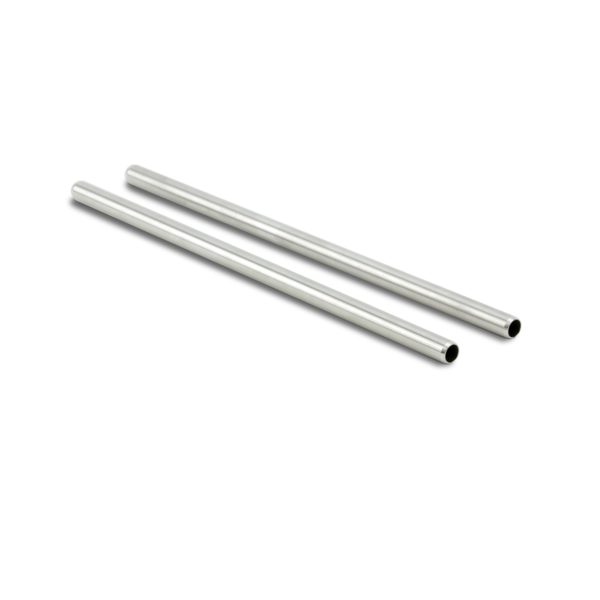

- 2x Rods
