Product Info

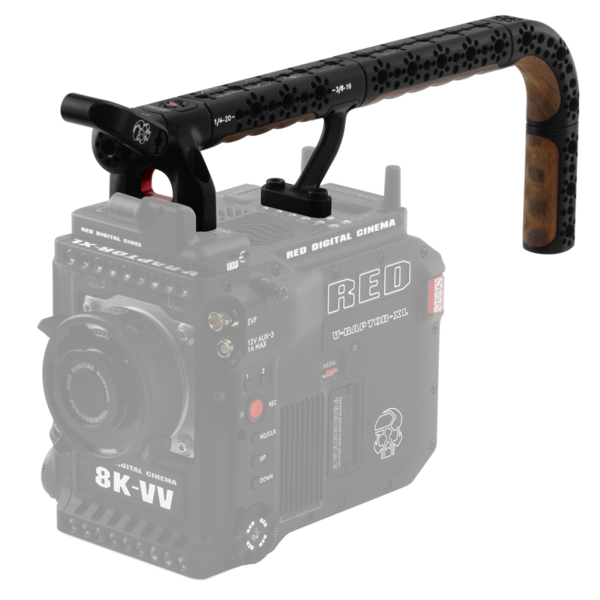

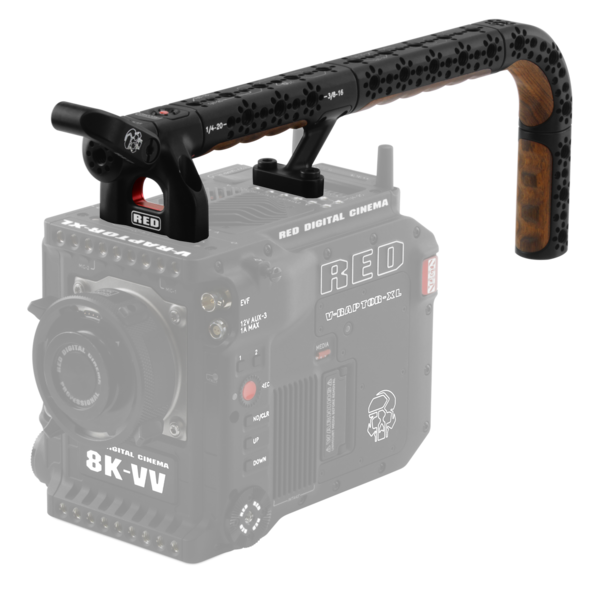

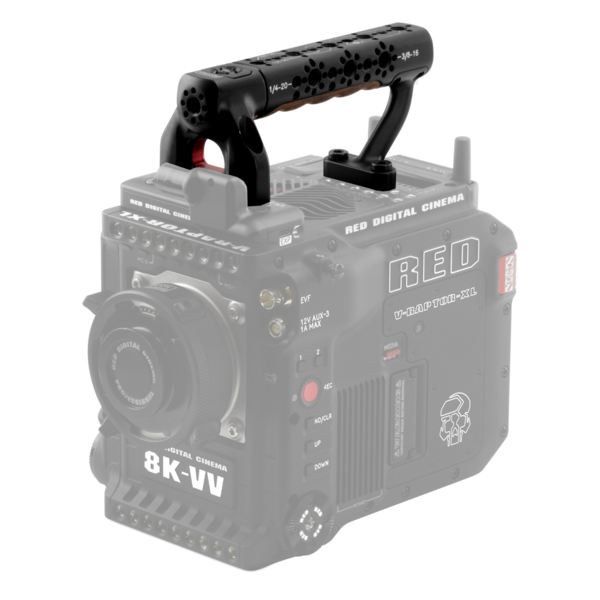

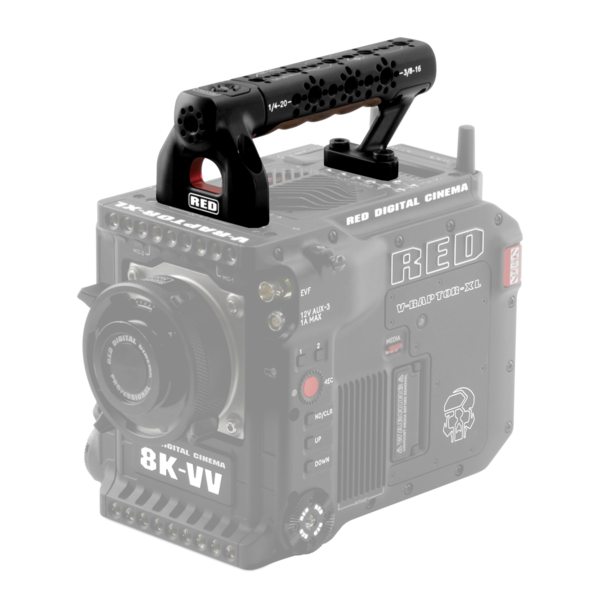

The V-RAPTOR® XL Top Handle w/ Extensions kit provides a complete modular top handle solution for V-RAPTOR® XL, allowing for light-weight or extended wrap around style configurations.
V-RAPTOR® XL Top Handle features a dedicated Start/Stop Button, ergonomic Bocote wood inlays, and multiple 3/8-16 and 1/4-20 mounting points. It also includes 1”, 3”, and 5” Top Handle extension pieces, an elbow piece, a 15 mm monitor mount, and two sizes of Top Handle Support Arms.
For replacement or additional components, such as screws, contact support@cs.inc.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| ✕ | ✕ | ✕ | ✕ | ✕ | ✕ | ✓ |
V-RAPTOR XL TOP HANDLE
| DIMENSIONS | Height: 2.36 in (60.0 mm) Width: 6.28 in (159.5 mm) Depth: 2.68 in (66.8 mm) |
|---|---|
| WEIGHT | Approximately 0.74 lbs (335.59 g) |
| MATERIALS | 7075 Aluminum and Bocote Hardwood |
| CAMERA MOUNTING | 2x 1/4-20 Captive Mounting Screws plus optional rear Dual 1/4-20 support arms for use with and without DSMC3 7" LCD |
| CONTROLS | Run/Stop |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
Tech specs reflect both current and projected information. Everything is subject to change.

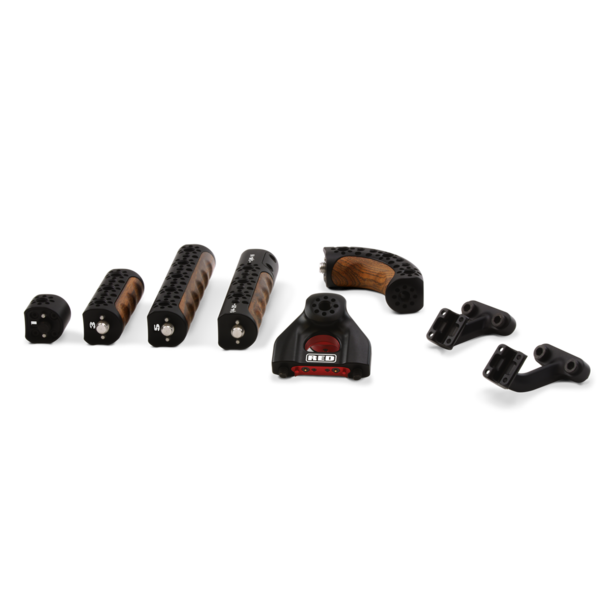

- 1x V-RAPTOR® XL Top Handle
- 1x 1" Top Handle Extension Piece
- 1x 3" Top Handle Extension Piece
- 1x 5" Top Handle Extension Piece
- 1x Elbow Piece
- 1x 15mm Monitor Mount
- 1x V-RAPTOR® XL Long Top Handle Support Arm (for use with DSMC3™ RED® Touch 7” LCD)
- 1x V-RAPTOR® XL Short Handle Support Arm (for use without DSMC3™ RED® Touch 7” LCD)
