DSMC3 Adapter A

SKU 720-0069

$795.00

Orders placed today are expected to ship in 2–3 weeks
QUESTIONS? Call us +1 (949) 536-7506

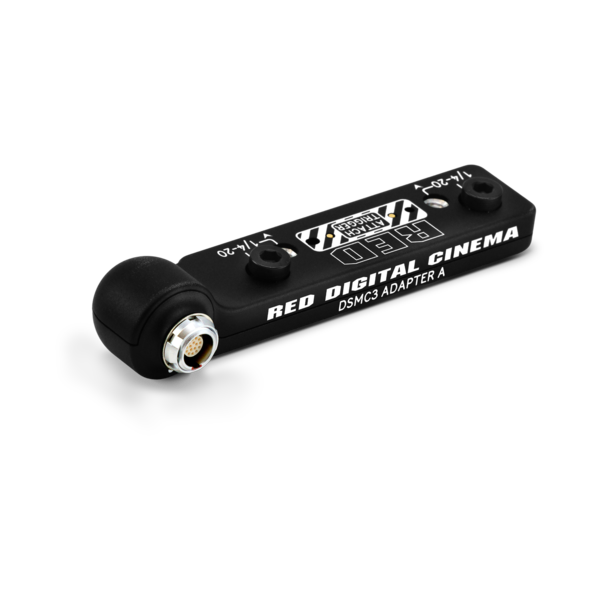

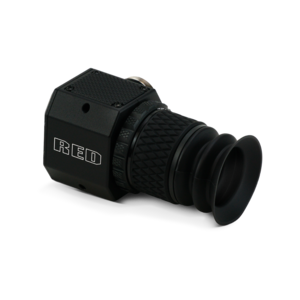

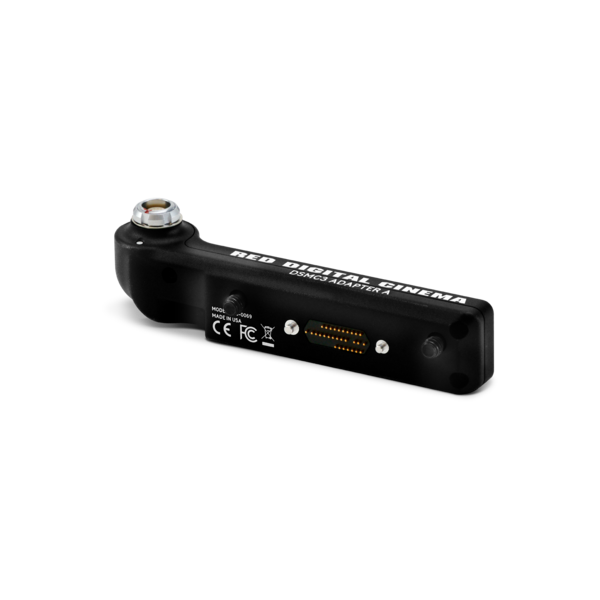

DSMC3 Adapter A attaches to the top of the KOMODO-X (firmware support coming late Q1 2024), the V-RAPTOR®, or the V-RAPTOR XL, and it provides a 16-Pin output that provides power, video, and control to the RED® Compact EVF and DSMC2® RED EVF (OLED).


The DSMC3 Adapter A includes a Run-Stop trigger pass-through that the operator can use for the V-RAPTOR, for the Compact Top Handles, and for Third-Party accessories.


NOTES:

  • The DSMC3 Adapter A is not compatible with the DSMC3 RED Touch 7.0" LCD or KOMODO Outrigger Handle.
  • To prevent damage to the camera, the DSMC3 Adapter A should only be attached or removed while the camera is powered off.

CAMERA COMPATIBILITY

DSMCDSMC2RANGERKOMODOKOMODO-XV-RAPTORV-RAPTOR XL
----COMING SOON
DSMC3 ADAPTER A
DIMENSIONSHeight: 1.3 in. (33.0 mm)
Width: 5.2 in. (132.1 mm)
Depth: 1.42 in. (36.1 mm)
WEIGHT0.25 lbs (113.4 g)
MATERIALAluminum
EVF CONNECTION16-Pin 1B LEMO socket
CAMERA MOUNTING2x 1/4-20 captive mounting screws
ACCESSORY MOUNTING2x 1/4-20 mounting points with trigger pass-through
OPERATING TEMPERATURE32°F to 104°F (0°C to 40°C)
STORAGE TEMPERATURE–4°F to 122°F (–20°C to 50°C)
OPERATING HUMIDITY0% to 85%, non-condensing
STORAGE HUMIDITY0% to 85%, non-condensing

Tech specs reflect both current and projected information. Everything is subject to change.
