Product Info

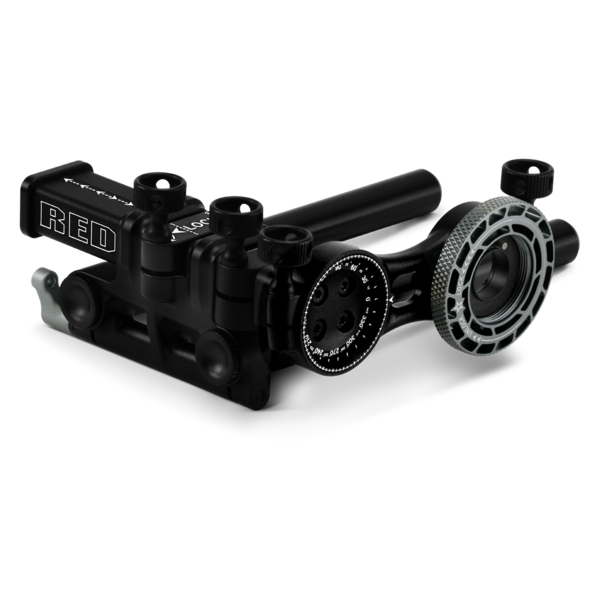

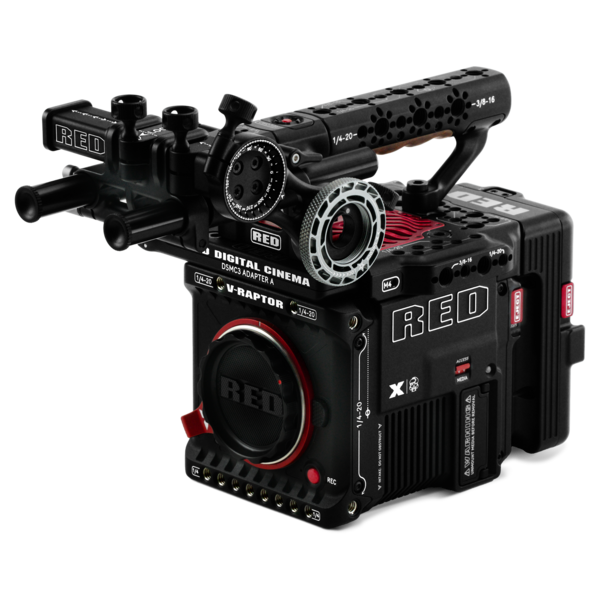

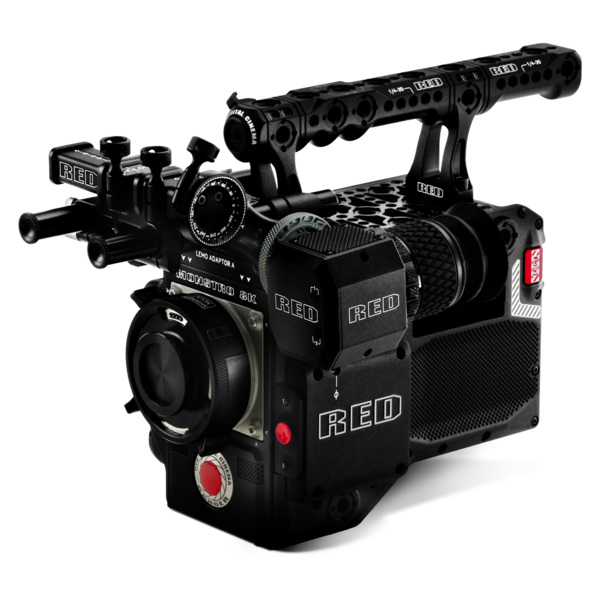

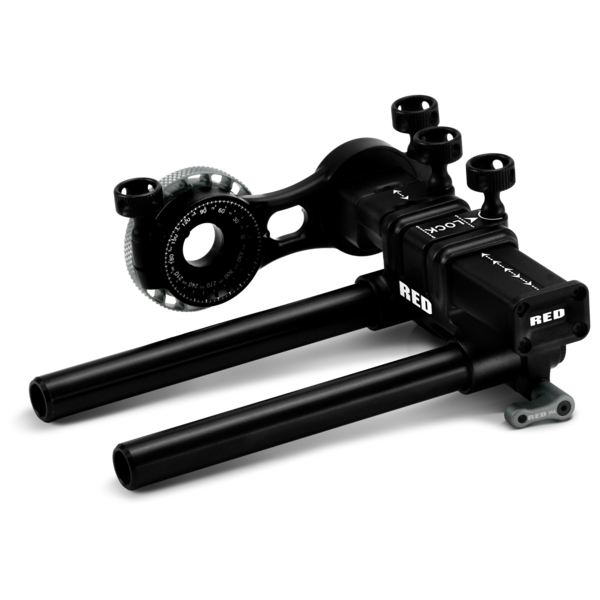

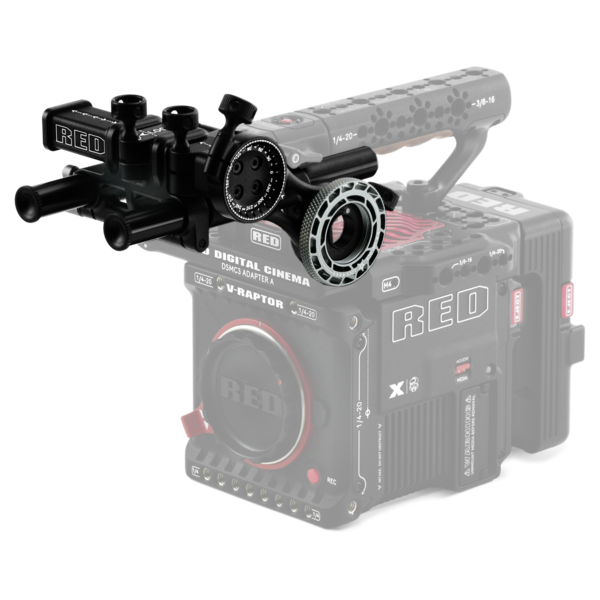

The RED® EVF Mount is a lightweight 15 mm LWS rod-based EVF mounting solution. RED designed the mount for use with the RED Compact EVF and the DSMC2® RED EVF (OLED), on DSMC3™ and DSMC2 camera systems.
The RED EVF Mount features a multi-axis telescoping design, which allows the operator to easily find the optimal position for every situation. The mount includes a quick-connect screw-on EVF clamp, laser etched distance and angle markers, machined thumb-screws for quick and easy adjustability, and support for the RED EVF Extension Arm (sold separately).
NOTES:
- The 15 mm bracket is not included, refer to RED 15 mm Top Handle Bracket and V-RAPTOR XL Top 15 mm LWS Rod Support Bracket for DSMC3 mounting options.
- The RED Compact EVF and the DSMC3 Adapter A are sold separately.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | ✓* | ✓* | - | COMING SOON | ✓* | ✓* |
*When used with a top 15 mm bracket. Refer to RED 15mm Top Handle Bracket and V-RAPTOR XL Top 15 mm LWS Rod Support Bracket for DSMC3 mounting options.
RED EVF MOUNT
| DIMENSIONS (excluding length of 6" rods) | Height: 4.68 in. (134.9 mm) Width: 5.31 in. (62.5 mm) Depth: 2.65 in. (67.3 mm) |
|---|---|
| WEIGHT | 0.86 lbs (390.1 g) |
| MATERIAL | Aluminum |
| CAMERA MOUNTING | Via 15mm bracket. Refer to RED® 15mm Top Handle Bracket and V-RAPTOR® XL Top 15mm LWS Rod Support Bracket for DSMC3 mounting options. |
| EVF MOUNTING | Via attachment wheel |
| OPERATING TEMPERATURE | 32°F to 104°F (0°C to 40°C) |
| STORAGE TEMPERATURE | –4°F to 122°F (–20°C to 50°C) |
| OPERATING HUMIDITY | 0% to 85%, non-condensing |
| STORAGE HUMIDITY | 0% to 85%, non-condensing |
Tech specs reflect both current and projected information. Everything is subject to change.
- 1x RED EVF Mount
- 2x 15 mm Rods (2.3 in. / 60 mm)
