Product Info

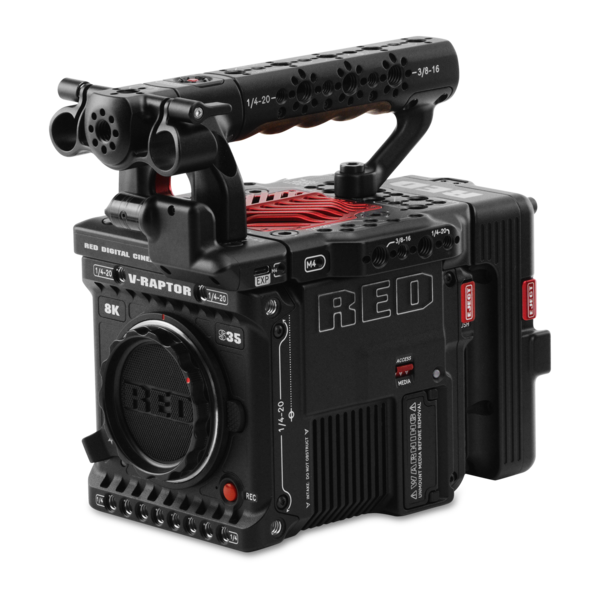

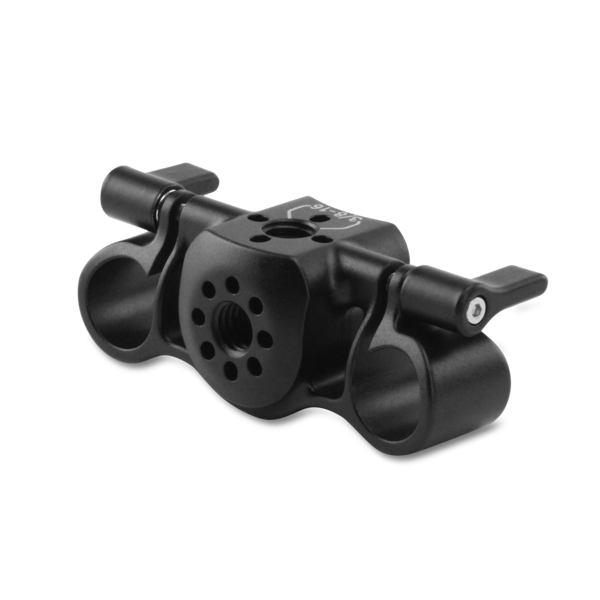

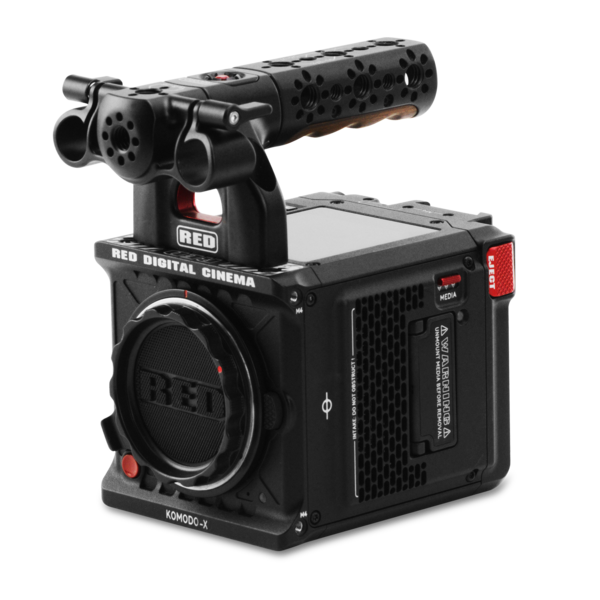

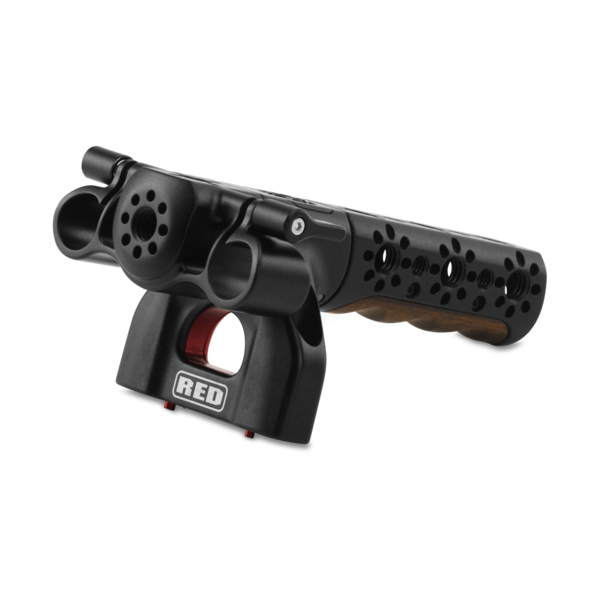

The RED® 15mm Top Handle Bracket is designed to attach directly to the V-RAPTOR® Top Handle, V-RAPTOR® XL Top Handle or RED® Compact Top Handle and provide a 60mm spaced set to 15mm rod clamps for attaching accessories such as EVF mounts, or lens motors used for iris control.
NOTES:

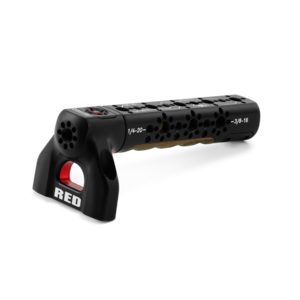

- Top Handle not included.
- For issues or troubleshooting, contact support@cs.inc.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO* | KOMODO-X* | V-RAPTOR* | V-RAPTOR XL* |
|---|---|---|---|---|---|---|
| - | - | - | ✓ | ✓ | ✓ | ✓ |
*When used with the V-RAPTOR® Top Handle, V-RAPTOR® XL Top Handle or RED® Compact Top Handle.
| DIMENSIONS | Height: 1.13 in (28.77 mm) Width: 3.17 in (80.40 mm) Depth: 1.21 in (30.70 mm) |
|---|---|
| WEIGHT | Approximately 0.20 lbs (90.0 g) |
| MATERIAL | Aluminum |

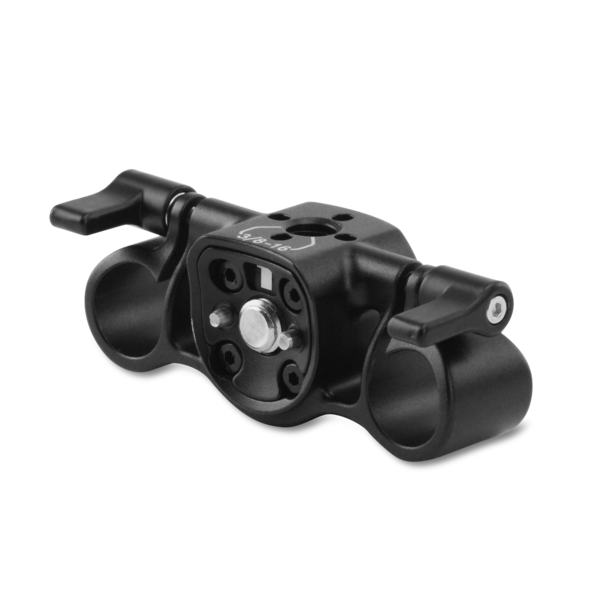

| CAMERA MOUNTING | Via 3/8-16 Captive Screw to V-RAPTOR Top Handle, V-RAPTOR XL Top Handle or RED Compact Top Handle |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
Tech specs reflect both current and projected information. Everything is subject to change.
