RED Pro I/O Module

SKU 720-0064

$1,095.00

IN STOCK
Orders placed today are expected to ship in 1–2 business days
QUESTIONS? Call us +1 (949) 536-7506

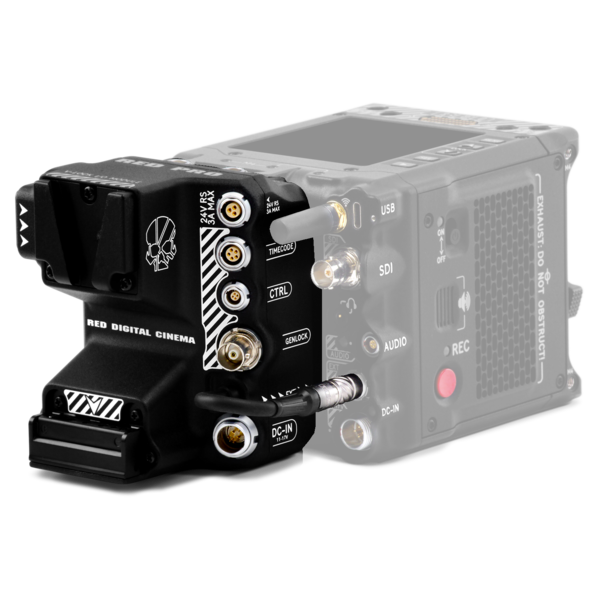

The RED® Pro V-Lock I/O Module offers a variety of input/ output connections, and it also includes an industry standard V-Lock mount to power your KOMODO-X with higher capacity batteries. This V-lock module mounts directly to the KOMODO-X’s rear Micro V-Lock plate and 9-Pin EXT Port, and it offers connections for the following:

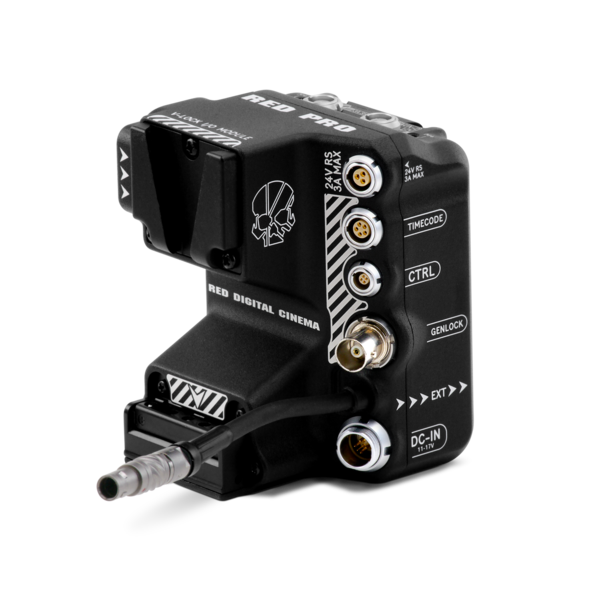

  • DC Power Input (DC-IN)
  • Genlock (BNC)
  • CTRL (4-Pin)
  • Timecode (5-pin)
  • 1x 3-Pin 24-volt (regulated) R/S port (3A max)

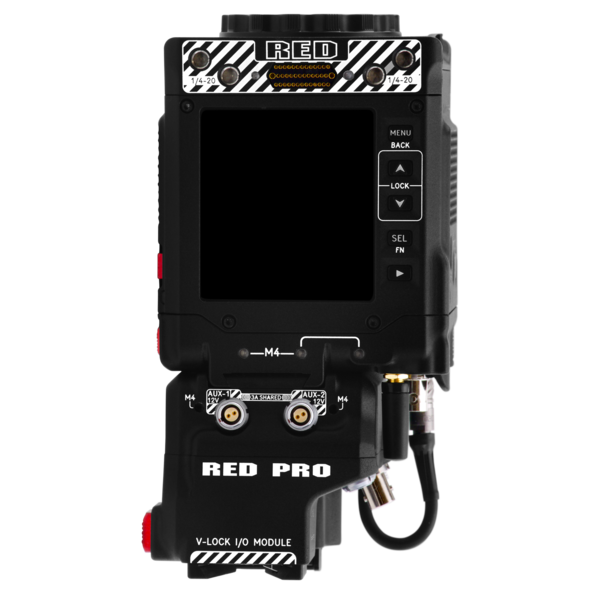

  • 2x 2-Pin 12-volt (unregulated) AUX ports (3A combined max)

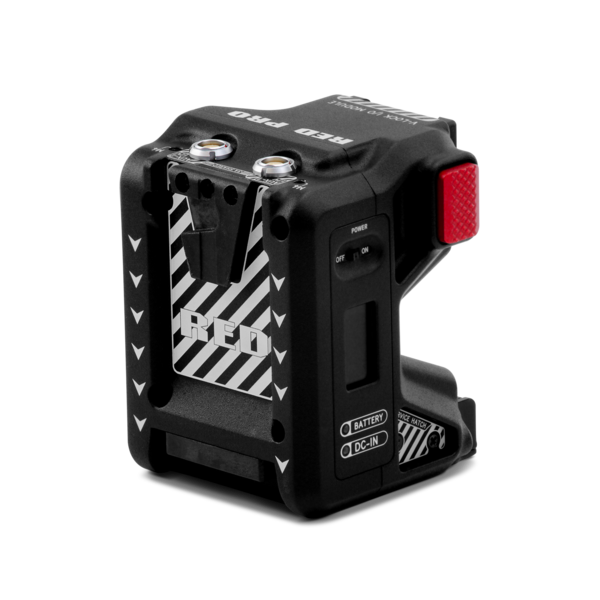

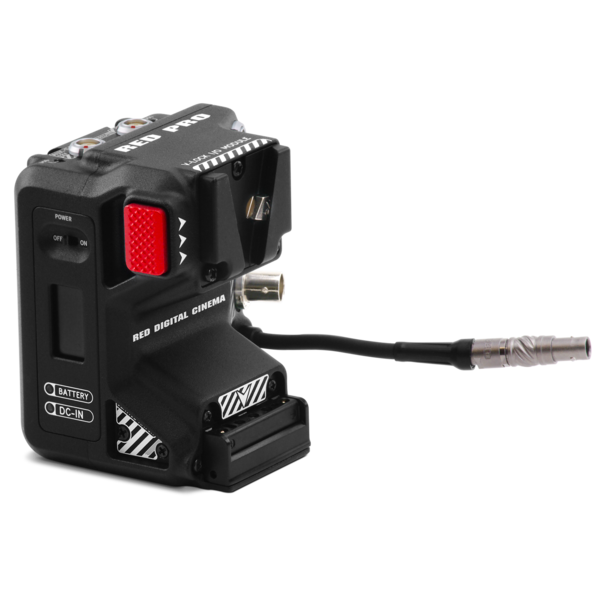

The module also includes an operator-side screen which displays key power voltage and battery percentage information (with compatible batteries) along with a power switch to cut power to the module when you want to leave a battery on the module for long durations.


NOTES:

  • It is recommended to use 12A Batteries such a the REDVOLT® MICRO-V or REDVOLT® XL-V when using all AUX outputs simultaneously.
  • When used with REDVOLT® NANO-V the AUX power outputs will be disabled.
  • RED Pro I/O Module was designed in partnership with Core SWX. For issues or troubleshooting, please visit https://coreswx.supportsystem.com..

CAMERA COMPATIBILITY

DSMCDSMC2RANGERKOMODOKOMODO-XV-RAPTORV-RAPTOR XL
------

DIMENSIONSHeight: 3.86 in. (98.00 mm)
Width: 3.38 in. (85.80 mm)
Depth: 2.80 in. (71.00 mm) (connected to BRAIN)
WEIGHT0.90 lbs / 410.00 g
MATERIALAluminum Alloy
COMPATIBILITYKOMODO-X
CAMERA MOUNTINGMicro V-Lock
CONNECTORS1x 24V Aux Power / Remote Start/Stop Outputs (3-Pin Fischer), 3A
2x Aux Power Output (2-Pin 0B), 3.0A shared
DC IN (6-Pin 1B socket)
Timecode (5-Pin 0B)
Genlock input (75 Ω BNC)
CTRL (RS232 Rx and Tx) (4-Pin 00B)
POWER CONTROL2-positon on/off slider switch
SCREENPower Information Display (OLED) 12mm x 23mm (0.4 in. x 0.9 in.)
OPERATING TEMPERATURE0°C to 40°C (32°F to 104°F)
CHARGING TEMPERATURE0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE–20°C to 50°C (–4°F to 122°F)

Tech specs reflect both current and projected information. Everything is subject to change.
