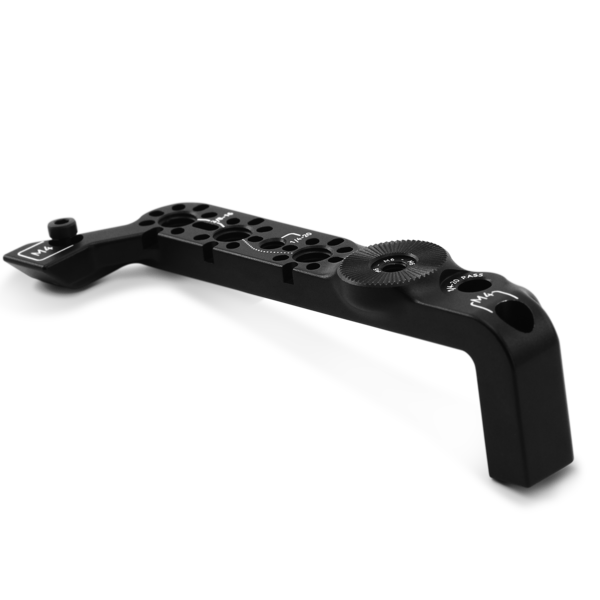

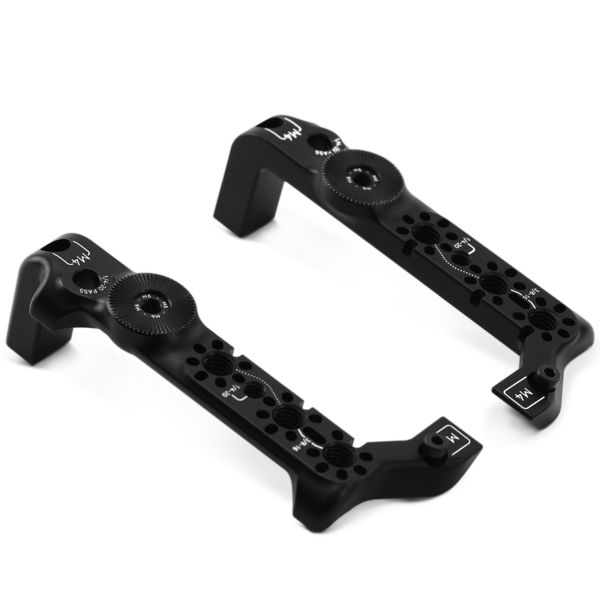

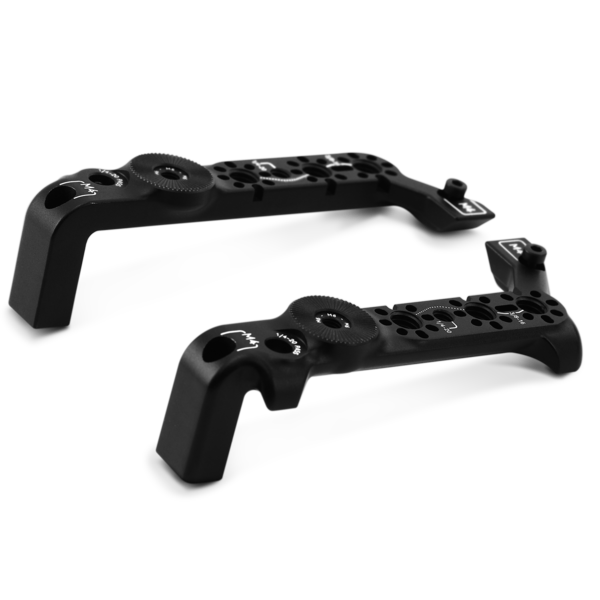

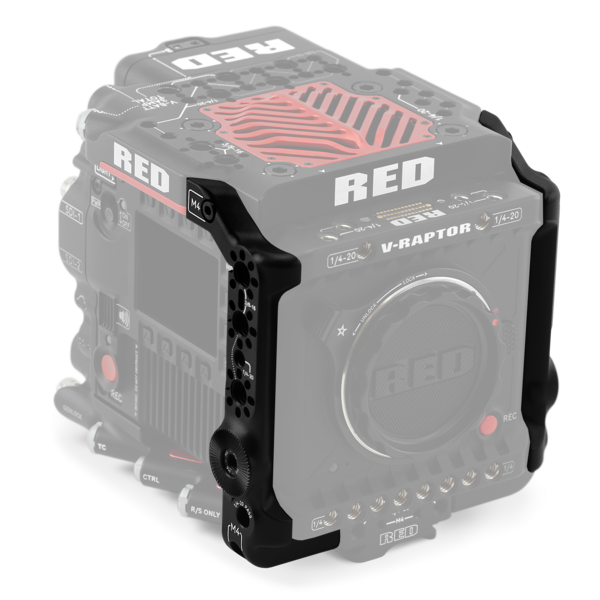

The V-RAPTOR® Side Ribs attach directly to the V-RAPTOR® Tactical Top Plate and Camera Plate (included in the V-RAPTOR® Quick Release Platform Pack) to provide a number of 1/4-20 and 3-8/16 mounting points, and standard rosettes to expand the mounting options for accessories on the side of the V-RAPTOR® camera.
For issues or troubleshooting, contact support@cs.inc.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | - | - | ✓ | - |
| DIMENSIONS | Height: 5.24 in. (133.00 mm) Width: 2.03 in. (51.50 mm) Depth: 1.68 in. (42.60 mm) |
|---|---|
| WEIGHT | Approximately 0.37 lbs (168.65 g) |
| MATERIALS | 7075 Aluminum |
| MOUNTING TO V-RAPTOR | 2x M4 Captive Mounting screw on V-RAPTOR Tactical Top Plate and Quick Release Platform Arca Plate |

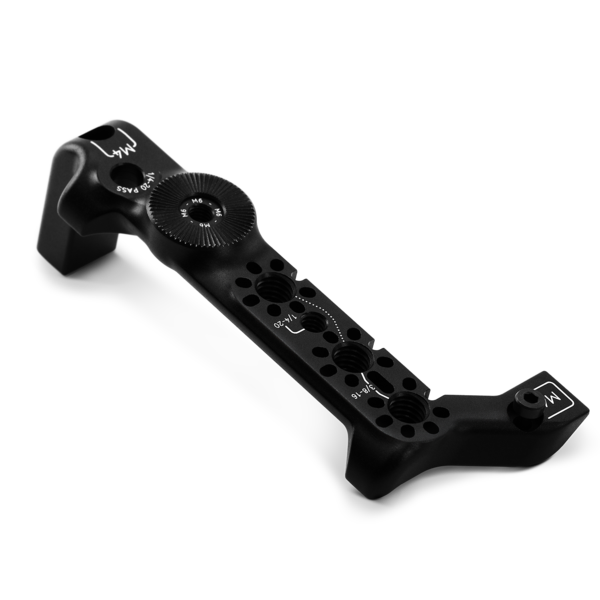

| RIB MOUNTING | 3x 3/8-16 Mounting Points, 1x Standard Rosette Mounting Points, 1x 1/4-20 Pass Through to Camera body and 1x 1/4-20 Mounting Point |
Tech specs reflect both current and projected information. Everything is subject to change.
